Autodesk Inventor vs. Advance Steel: A Detailed Comparison

September 19, 2024

| Autodesk Inventor, Autodesk Products, Product Design & Manufacturing Collection, Product Design Suite, Structural Steel

Autodesk Inventor vs. Advance Steel: A Detailed Comparison

Choosing the right design software can make or break a project, especially when you’re dealing with complex structures or intricate mechanical systems. If you’re in the engineering or construction world, you’ve likely heard the debate about Autodesk Inventor vs Advance Steel—two industry-leading tools, each designed to tackle different challenges.

In this comprehensive comparison, we’ll explore the strengths of both software packages, breaking down their features and applications so you can make an informed decision. Whether you’re building next-generation machinery or detailing a steel structure for a high-rise building, understanding these tools’ capabilities will ensure you’re leveraging the best technology for your needs.

So, if you’re ready to elevate your engineering or construction projects, let’s dive into the intricate details that set Autodesk Inventor vs Advance Steel apart. Buckle up—this deep dive will give you the insights you need to choose wisely and maximise efficiency, accuracy, and innovation in your next project.

Overview of Autodesk Inventor

Autodesk Inventor is a comprehensive 3D CAD software primarily used for mechanical design. It supports a wide range of applications, from product design to manufacturing, enabling engineers to create highly detailed models, prototypes, and documentation.

Key Features of Autodesk Inventor for Steel Design and Fabrication

Parametric Modelling: Inventor’s parametric design capabilities allow engineers to define and manipulate relationships between elements, facilitating easy updates and modifications throughout the design process.
Frame Generator: This tool simplifies the creation of structural frames. Users can quickly generate accurate frame designs using pre-configured components, which is particularly useful in fabricating steel structures. Frame Generator: This tool simplifies the creation of structural frames. Users can quickly generate accurate frame designs using pre-configured components, which is particularly useful in fabricating steel structures. However, Inventor’s Frame Generator lacks the advanced editing and automation functions that Advance Steel offers for creating connections, cuts, trims, notches, and more.
Large Content Library: Inventor includes an extensive library of components such as fasteners, structural shapes, and other mechanical parts, enabling efficient design workflows without the need to create standard components from scratch.
Integrated Simulation: Engineers can run simulations directly within Inventor to assess stress, motion, and deflection. This feature helps optimise designs before manufacturing, reducing the need for physical prototypes.
Sheet Metal Design: Both Inventor and Advanced Steel have sheet metal tools. In Inventor the module is called Sheet Metal and in Advance Steel, it’s referred to as Folded Plate.
Automated Documentation: Using the integration with the iLogic design automation programming environment, you can automate manufacturing drawings, complete with dimensions, annotations, and BOMs (Bills of Materials), ensuring consistency and reducing manual errors.

Ideal Use Cases for Autodesk Inventor

Architectural Fabrication: Inventor has the flexible 3D modelling tools to design fabricated products that are aesthetic, ergonoic or organic in design, where as Advance Steel is better suited for straight lines and industrial projects.
Mechanical Engineering: Inventor is well-suited for designing mechanical systems and components that require precision and the ability to simulate real-world performance.
Product Development: Its comprehensive toolset allows for detailed product design, from concept to final prototype.
Structural Fabrication: Although primarily a mechanical tool, Inventor can handle structural steel design, making it versatile for mixed mechanical and structural projects.

Overview of Advance Steel

Advance Steel is a specialised software focused on structural steel detailing. It integrates seamlessly with BIM (Building Information Modelling) workflows, providing tools for automating the creation of detailed fabrication drawings, models, and documentation required for steel construction.

Key Features of Advance Steel

Specialised Steel Detailing Tools: Advance Steel is purpose-built for structural detailing, offering tools that cater specifically to the needs of steel fabricators and structural engineers. These tools include advanced steel editing and automation functions for making cuts, trims, and notches.
Automatic Fabrication Drawings: The software can automatically generate comprehensive fabrication drawings, reducing the time from design to production and ensuring all structural elements are accurately detailed.
Connection Libraries: Advance Steel includes a vast library of pre-configured steel connections, making it easier to apply standardised joints in structural designs. Users can also create custom connections to meet specific project requirements. Inventor, on the other hand, lacks this advanced parametric connection library.
BIM integration: Advance Steel syncs seamlessly with Revit, while Inventor also offers BIM integration, including the ability to export to Revit as RVT or RFA files.
Efficient Material Management: The software automates the generation of BOMs, cut lists, and material takeoffs, streamlining the process of inventory management and cost estimation in construction projects.
Advanced Documentation and Revision Control: Advance Steel’s documentation features are tightly integrated with the model, ensuring that changes to the design automatically update all associated drawings and documentation.

Ideal Use Cases for Advance Steel

Structural Engineering: Advance Steel is ideal for engineers who focus on the design, detailing, and documentation of steel structures.
Steel Fabrication: The software’s automation capabilities make it invaluable for fabricators who require precise and efficient production workflows.
Construction Projects: Its BIM integration and detailed documentation support complex construction projects involving structural steel.

Feature Comparison of Overlapping Tools

Both Autodesk Inventor and Advance Steel offer tools that overlap in the realm of metal design, particularly in frame generation and sheet metal design. Here’s a detailed comparison of these features:

Frame Generation and Steel Editing

Autodesk Inventor Frame Generator:
- Allows users to create structural frames quickly using predefined components.
- Supports basic bolted connections and weldments.
- Limitations: Lacks connection library and advanced editing capabilities and automation for cuts, trims, and notches compared to Advance Steel.
Advance Steel Steel Editing:
- Offers advanced tools for creating and modifying steel structures, including automated functions for cuts, trims, and notches.
- Includes a parametric connection library that automatically adjusts connection sizes based on member dimensions.
- Strengths: Provides comprehensive tools for stairs, rails, and portal buildings, which Inventor does not offer.

Sheet Metal Design

Inventor Sheet Metal Design:
- Provides tools for creating and manipulating sheet metal parts, including folding and cutting.
- Applications: Ideal for industries requiring detailed sheet metal fabrication.

Automation and Documentation

Inventor Automation:
- Has a 2D/3D automation for drawing environments and exporting DXF files.
- Complexity: 3D automation and basic 2D automation are relatively easy, fully automating part drawings can be complex
Advance Steel Automation:
- Provides robust automation for part drawings, DXF files for laser/plasma cutters, and NC1 G-code for beamline machines.
- Efficiency: Streamlines the documentation process, making it faster and more reliable.

Autodesk Inventor vs Advance Steel: Key Differences

Feature	Autodesk Inventor	Advance Steel
Focus	3D Mechanical Design	Structural Steel Detailing
Primary Application	Product Development, Mechanical Systems, Fabrication	Steel Structures, Construction Projects
Industry	Product Design, Industrial Machinery	Construction, Structural Engineering
Modelling Capabilities	Parametric Mechanical Components	Detailed Steel Structures and Connections
Simulation Tools	Integrated for Mechanical Parts	None. Need to export to Robot or other FEA packages
BIM Support	No bidirectional Sync tool with Revit but offers many sync workflows and import/export capabilities	Syncs with Revit and Robot structural analysis
Documentation	Automated Manufacturing Drawings	Automated Fabrication Drawings
Steel Editing Tools	Frame Generator	Advanced Steel Editing and Automation
Connection Libraries	Limited	Vast Parametric Connection Library
Specialised Tools	Sheet Metal Design	Folded Plates, Stairs, Rails, Portal Buildings
Drawing Automation	Complex to set up	Automated through a Dedicated Tool
Fabrication Automation	DXF Export	DXF, NC1(G-Code Export)

Autodesk Inventor vs Advance Steel: Choosing the Right Tool for Your Needs

When to Use Autodesk Inventor

Inventor is the optimal choice for projects that require detailed mechanical design, particularly in industries like automotive, aerospace, and product development. It provides the necessary tools for creating, testing, and refining mechanical parts and assemblies, making it ideal for engineers who need to model complex components and simulate their behaviour under various conditions. In addition to its robust design capabilities, Inventor excels in modeling complex shapes with curvature, making it especially useful for designs that require intricate and organic geometries. Its frame generator and sheet metal design tools can also be beneficial for certain structural steel projects.

When to Use Advance Steel

Advance Steel is the go-to software for professionals in structural engineering and steel fabrication. Its specialised tools and BIM integration make it essential for efficiently detailing and documenting steel structures in construction projects. It is particularly beneficial for fabricators who need to automate drawing production and ensure compliance with industry standards. Advance Steel’s advanced steel editing tools, parametric connection library, and specialised features like folded plate, stairs, rails, and portal buildings make it the superior choice for complex structural steel projects. However, while Advance Steel excels in structural steel detailing, it may not be the best option for projects involving curved shapes.

This means that for architectural applications requiring curvature, Inventor is the better tool, whereas, for industrial applications, Advance Steel proves to be the superior choice.

Autodesk Inventor and Advance Steel integration

While both tools are better at certain tasks, you can still integrate both tools and combine their tool sets to create more detailed designs. Here’s how it works.

Steps to Convert IFC Components into Advance Steel Members:

1. Import the IFC File:
  Use the Import function in Advance Steel to bring the IFC file into your project.
  Go to Home > Import > IFC and select the IFC file.
  The IFC components will be imported into Advance Steel as 3D solids, and they won’t initially be recognized as standard Advance Steel members like beams or columns.
2. Inspect the Imported Geometry:
  After importing the IFC file, inspect the components to understand the structural elements (e.g., beams, columns, plates) that need to be converted into Advance Steel members.
  Use the Object Inspector or Properties panel to check the dimensions and placement of each component.
3. Convert Geometry to Advance Steel Objects:
  To convert IFC objects (such as solids) into parametric Advance Steel members, you can use the “Convert to Advance Steel Object” feature:

- - Beams and Columns: For linear objects that represent beams or columns, you can use the Beam Conversion Tool to convert them into standard Advance Steel beams.
    Use the “Advance Steel Beams” command to recreate the IFC solid as a native Advance Steel beam. This will allow you to assign profiles and cross-sections, as well as work with connections and detailing tools.
  - Plates: If the IFC model contains plates or sheet elements, you can convert these into Advance Steel plates using the Plate Tool. This lets you add cuts, bolts, and welding details.

1. Assign Structural Properties:
  After converting the geometry to Advance Steel members, assign the appropriate material, section type, and structural properties to each member.
  You can also apply Advance Steel’s intelligent connections (e.g., bolt groups, welds, stiffeners) to the converted members.
2. Refine the Model:
  Depending on the complexity of the IFC import, some components might require further manual adjustments or reconstruction to align with Advance Steel’s parametric modeling system.
  For example, custom connection types from IFC may need to be rebuilt using Advance Steel’s native tools for connections.
3. Save the Converted Model:
  Once the conversion is complete, save the model as an Advance Steel project. You can now take advantage of Advance Steel’s automated detailing, fabrication drawings, and BOM generation features for your newly converted members.

Unlock Your Design Potential—Choose the Right Tool for Success

Autodesk Inventor vs Advance Steel is a debate that is likely to continue, given how powerful both tools are. Inventor excels in mechanical design and product development, offering robust simulation and modelling capabilities. Advance Steel, on the other hand, is unparalleled in its ability to streamline structural steel detailing and integrate seamlessly with BIM workflows.

So, based on your requirements and the demands of the projects you’re working on, make sure to choose the right product that will help you deliver great results. If your focus is on mechanical design and product development, Inventor is the clear choice. But if you’re working on complex structural steel projects that require advanced detailing, automation, and BIM integration, Advance Steel is the superior option.

Buy Software

Get the best prices on Autodesk software.

Training Courses

Get skilled up and enroll in an Autodesk training course

Services

Setup, libraries, programming and consulting services

Contact Us

P: 1800 490 514 | E: info@designconsulting.com.au

Comprehensive Comparison of BIM Collaborate and BIM Collaborate Pro

August 2, 2024

| No Comments

| Autodesk 360, Autodesk 360 Products, Autodesk Inventor, Autodesk Labs, Autodesk Products, Autodesk Research, Building Design Suite

Comprehensive Comparison of BIM Collaborate and BIM Collaborate Pro

Building Information Modeling (BIM) has revolutionised the architecture, engineering, and construction (AEC) industries by fostering enhanced collaboration and coordination among project stakeholders. Autodesk, a leader in BIM solutions, offers two significant tools: BIM Collaborate (BC) and BIM Collaborate Pro (BCP). Although both platforms aim to enhance project collaboration, they cater to distinct needs and offer varied functionalities. This comprehensive comparison explores the features, benefits, and use cases of these two platforms to help you determine which is best suited for your needs.

What is BIM Collaborate?

BC is a cloud-based platform available with Autodesk Construction Cloud that is tailored to streamline document management, design coordination, and project administration. It centralises project information, allowing teams to collaborate seamlessly from any location. Key features include automated clash detection, design review tools, and advanced analytics, making it ideal for teams seeking robust collaboration without the need for real-time co-authoring.

What is BIM Collaborate Pro?

BCP builds on the capabilities of BIM Collaborate by incorporating real-time co-authoring and advanced collaboration tools, specifically designed for Autodesk software such as Revit, Civil 3D, and Plant 3D. This platform is geared towards larger teams and complex projects that demand simultaneous collaboration on models, enabling multiple users to work on the same design file concurrently.

Key Differences Between BIM Collaborate and BIM Collaborate Pro

Feature

BIM Collaborate

BIM Collaborate Pro

Cloud-based Document Management

Yes

Automated Clash Detection

Yes

Project Administration

Yes

Advanced Analytics

Yes

Design Review and Coordination

Yes

Robust Access Controls

Yes

Democratized Access to Design Data

Yes

Revit Issues Add-in

Yes

Sandboxed Coordination Spaces

Yes

Revit Cloud Worksharing

Yes

Collaboration for Civil 3D

Yes

Collaboration for Plant 3D

Yes

Real-time Co-authoring

Yes

Project Timeline Visualization

Yes

Valuable Project Insights

Yes

Detailed Feature Analysis and Comparison

Cloud-based Document Management

BC offers a comprehensive cloud-based document management system, enabling teams to centralise project data and access documents from any location. This feature ensures that all team members are working with the latest information.

On the other hand, BCP enhances document management by adding real-time collaboration capabilities. Users can work on shared documents simultaneously, facilitating quicker issue resolution and more dynamic project updates.

Automated Clash Detection

Both platforms feature automated clash detection, essential for identifying design conflicts before construction begins.

BC allows users to run clash detection scans and generate reports to highlight conflicts, crucial for maintaining project timelines and budgets, whereas BCP not only includes clash detection but also supports real-time collaboration on clashes. Users can view and address issues as they arise, speeding up decision-making and minimising rework.

Advanced Analytics

Advanced analytics tools are available in both BC and BCP, offering valuable insights into project performance and the impact of changes. BC provides comprehensive analytics dashboards that allow users to track project progress and manage resource allocation effectively. These dashboards enable teams to generate detailed reports, helping them assess the effects of changes across various disciplines. Building on this foundation, BCP enhances the analytics experience with real-time data visualisation. This capability allows teams to identify trends and address issues as they emerge, ensuring timely interventions and more informed decision-making.

Design Review and Coordination

Design review and coordination are crucial for aligning all stakeholders on project goals. BC features intuitive markup tools that enable users to annotate designs and track issues seamlessly. Design reviews can be conducted via a web browser, simplifying the feedback collection process and making it accessible to all team members. On the other hand, BCP takes design review to the next level by adding real-time capabilities. This enhancement allows multiple users to provide feedback simultaneously, significantly improving communication and efficiency throughout the review process.

Real-time Co-authoring

A standout feature of BCP is its real-time co-authoring capability, which sets it apart from BC, which requires users to check out files for edits, potentially causing delays. On the other hand, BCP allows multiple users to work on the same model simultaneously. Changes made by one user are instantly visible to others, facilitating seamless collaboration and reducing the time required for design iterations. This real-time co-authoring capability enhances teamwork and accelerates project timelines.

Collaboration for Specific Software

BCP offers specialised collaboration tools for various Autodesk software, making it highly suitable for complex projects. For instance, it includes cloud worksharing for Revit models, which facilitates seamless collaboration among architects and engineers. Additionally, it enhances collaboration on site designs and grading plans for civil engineering teams using Civil 3D. For industrial projects, it supports real-time collaboration on piping and instrumentation diagrams with Plant 3D. In contrast, BC lacks these specialised tools, making it less suitable for teams that rely heavily on these specific applications.

Robust Access Controls

Both BC and BCP provide robust access controls to protect sensitive project data. BC allows administrators to set user permissions, controlling who can view, edit, and share project information. BCP builds on these access control features by adding the ability to manage permissions in real time. This ensures that data security is maintained during collaborative sessions, allowing teams to work confidently without compromising sensitive information.

Sandboxed Coordination Spaces

Sandboxed coordination spaces are a feature available in both platforms, enabling teams to explore design options without affecting the main project. BC supports the creation of isolated environments for testing changes, which is particularly useful for evaluating different design scenarios. Enhancing this capability, BCP allows for real-time collaboration within sandboxed spaces. This feature enables teams to discuss and resolve issues while exploring various design alternatives, fostering innovation and improving overall project outcomes.

Project Timeline Visualization

Effective project management requires clear visualisation of project timelines and milestones. BIM Collaborate includes tools such as Gantt charts and milestone tracking to help teams understand deadlines and dependencies. BIM Collaborate Pro offers these same visualisation tools but with the added benefit of real-time updates based on collaborative inputs. This ensures that all team members are aware of changes as they occur, promoting better coordination and timely adjustments to project schedules.

Valuable Project Insights

Both platforms provide valuable insights into project performance, helping teams identify trends and make informed decisions. BIM Collaborate offers analytics tools that track common issues and assess project performance over time. In contrast, BIM Collaborate Pro provides enhanced insights with real-time data visualisation. This capability makes it easier to spot potential problems and opportunities for improvement, allowing teams to proactively address issues and optimise project outcomes.

When to Use BIM Collaborate?

BC is ideal for:

Small to Medium-Sized Projects: Suitable for teams that do not need extensive real-time collaboration features.
Document Management Focus: Projects prioritising document management and design coordination.
Budget Constraints: Organisations seeking a cost-effective solution.

When to Use BIM Collaborate Pro?

BCP is best for:

Large Teams and Complex Projects: Ideal for teams needing real-time collaboration and coordination across multiple disciplines.
Integrated Workflows: Projects involving Autodesk software applications like Revit, Civil 3D, and Plant 3D.
Remote Collaboration: Organisations with distributed teams needing real-time co-authoring capabilities.

Integration with Other Autodesk Tools

Both BIM Collaborate and BIM Collaborate Pro integrate with other Autodesk tools:

Autodesk Revit: Both support Revit, with Pro offering advanced cloud work sharing.
Autodesk Civil 3D: Pro facilitates effective collaboration on site designs.
Autodesk Plant 3D: Pro supports industrial design collaboration.
Autodesk Navisworks: Both can be used with Navisworks for project visualisation and coordination.

Make the Right Choice for Your BIM Needs

Both BC and BCP play vital roles in enhancing collaboration within the AEC industry. While BC offers a strong foundation for document management and design coordination, BCP enhances the experience with real-time co-authoring and specialised tools for Autodesk applications.

When selecting between the two, consider your project size, team structure, and specific collaboration needs. Understanding the differences and capabilities of each platform will enable teams to make informed decisions, leading to more efficient project execution and better outcomes.

Embracing a cloud-based BIM solution is a step towards modernising your project workflows and enhancing collaboration throughout all phases of construction.

Contact Us

P: 1800 490 514 | E: info@designconsulting.com.au

Maximising CNC Efficiency with Autodesk Inventor and Fusion CAM Setup and Training Services

July 5, 2024

| No Comments

| Architecture, AutoCAD, AutoCAD, Autodesk Inventor, CAD/CAM, Construction, Defence, Fusion 360, Infrastructure, Manufacturing, Plant Design Suite, Training, Utilities

Maximising CNC Efficiency with Autodesk Inventor and Fusion CAM Setup and Training Services

Autodesk Inventor and Fusion CAM offer powerful tools to enhance CNC machining efficiency through streamlined workflows, advanced toolpath generation, and high-efficiency roughing. Design Consulting specialises in expert setup, post-processing, and training services to help manufacturers fully leverage these capabilities.

By integrating CAD and CAM functionalities, Autodesk’s solutions eliminate the need for multiple tools, reduce data translation issues, and enable advanced machining techniques. This integration supports seamless production, minimises errors, and fosters team collaboration. In fact, manufacturers using integrated CAD/CAM solutions have seen up to a 30% reduction in design-to-manufacturing time and a 25% increase in productivity.

In this blog post, we’ll explore how you can enhance CNC efficiency through expert Inventor and Fusion CAM setup, post-processing, and training services, ultimately boosting profitability and product quality in today’s competitive landscape.

How Do These Solutions Improve Efficiency?

1. Autodesk Inventor

Autodesk Inventor is renowned for its robust capabilities in mechanical design, simulation, and tooling. When it comes to CNC machining, Inventor’s integration allows for precise and efficient toolpath generation, directly influenced by the CAD model. This means any design changes are automatically updated in the toolpath, reducing errors and saving valuable time.

2. Fusion CAM

Fusion 360 stands out with its CAM functionality, providing an all-in-one platform that combines design, engineering, and manufacturing capabilities. Fusion CAM offers a diverse range of machining strategies, from 2.5-axis milling to complex 5-axis operations. The software’s ability to directly connect to CNC machines streamlines the workflow from design to fabrication, ensuring that your projects are both accurate and timely.

3. Inventor Nesting

Inventor Nesting works seamlessly within the Inventor environment, providing a high-level solution for optimising sheet metal and flat stock designs. This tool not only helps in maximising material utilisation but also significantly cuts down on waste, which is a crucial factor for cost-effective manufacturing.

The Benefits of Setting Up Inventor or Fusion CAM with Design Consulting

1. Customised Setup and Configuration

At Design Consulting, we understand that every manufacturing setup is unique. That’s why we offer customised services that tailor Inventor and Fusion CAM to perfectly fit your specific machinery and production needs. By optimising the software settings and configurations, we ensure that you get the most out of your CNC machines.

2. Associative Link Between Design and Machining

One of the standout features of using Inventor and Fusion CAM is the associative link between the design models and the machining toolpaths. Any modifications made to the design are automatically reflected in the toolpaths. This dynamic link minimises the need for manual updates and reduces the potential for errors, leading to smoother production runs and higher quality products.

3. Expert Post-Processor Customisation

The post-processing phase in CNC machining translates your CAD/CAM toolpaths into machine-understandable code (G-code). Design Consulting provides expert post-processor customisation services, ensuring that the generated code is optimised for your specific CNC machines, thereby enhancing efficiency and reducing turnaround times.

4. Training and Support

Implementing new software tools requires not just technical setup but also ensuring that your team is fully capable of utilising these tools. Design Consulting offers comprehensive training sessions tailored to your needs, conducted by certified experts. These training sessions cover everything from basic operations to advanced machining techniques, empowering your team to leverage Autodesk Inventor and Fusion CAM effectively.

Our ongoing support and maintenance services ensure that your operations continue to run smoothly and any potential issues are addressed promptly, allowing you to maintain peak productivity.

Unlock Your CNC Potential with Design Consulting's Autodesk Inventor and Fusion CAM Expertise

Integrating Autodesk Inventor and Fusion CAM into your CNC workflows with the help of Design Consulting not only enhances your operational capabilities but also provides a significant competitive edge in the market. By reducing material waste, minimising errors, and improving overall efficiency, our setup, post-processing, and training services equip you with everything needed to excel in today’s dynamic manufacturing landscape.

Explore more about how Design Consulting can transform your CNC operations by visiting our CNC posts page.

Contact Us

P: 1800 490 514 | E: info@designconsulting.com.au

Whats New in Autodesk Vault 2024

March 30, 2023

| No Comments

| AutoCAD, AutoCAD Electrical, AutoCAD Mechanical, Autodesk Inventor, CDE (Common Data Environment), Data Management for AutoCAD, Data Management for Civil and Infrastructure, Data Management for Manufacturing, Infrastructure, Inventor Professional, Manufacturing, Vault, Vault

What's New in Autodesk Vault 2024

Autodesk Vault 2024 is out with a focus on enforcing standards, delivering intuitive tools and administrative enhancements

Authors: More features for CAD users in Vault 2024 to Focus on the Work

Job Processor: DXF and STEP

Users can export DXF and STEP files for manufacturing, suppliers, and subcontractors as part of the release process.

On-demand DXF/STEP publish
DXF/STEP publish on state transition
Sync LC state and revision on DXF/STEP files
DXF/STEP file getting created in vault to use Design Rep classification and PDF like workflow
DXF/STEP file publish options like PDF publish options

Copy Design Enhancements

Design re-use efficiency by reducing number of clicks to complete the workflow and pre-checks to prevent errors prior to creating a new design variation.

More usability by enabling Copy/Paste in the copy design numbering panel
Use the Copy/Paste functionality to edit multiple row values in and excel spreadsheet and then copy them to the Copy Design with one operation
More guidance through highlight restriction before copy operations start (property: –)
Export File list within the warning dialog

Copy Design BOM Enhancements

Newly copied parts can be assigned to an Item immediately after Copy Design is executed.

Copy Design updates the BOM information in part files without having to open them in Inventor first

Copy Folder Structure

You can setup a new project quickly and start with a known folder structure.

Users can create a project folder from a template or previous folder structure
Copy Folder Structure permissions and Properties

Save up to 20% on Autodesk Vault Deployments

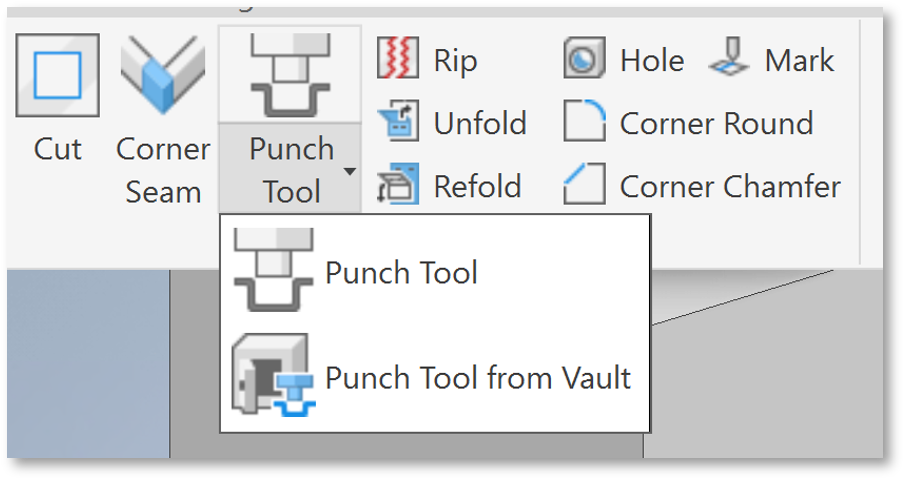

Insert Punch Tool from Vault

Users can select sheet metal punches from Vault when they are not in the local workspace.

Browse for 3D iFeature shapes from Vault to be inserted into the sheet metal face.

Administrators: Enforcing Vault Standards for Gratere Project Compliance

Inventor Design Data & Template Management

CAD Administrator can create and deploy template updates to users easily through Vault. Users remain up-to-date with templates and design data without manual updates.

The focus in 2024 is to create an Inventor\Vault integrated experience for the Template and Design Data Files with automatic updates of Templates and Design Data within specific workflows.

Peer Review

Control the lifecycle process by requiring a different user to transition to the next state.

With this new user requirement, you can configure the Vault State transition to require Four Eyes Check and configure multiple rules for which files require Peer Review based on property values.

Job Processor

Apply retry strategy to visualization and custom jobs to reduce administration and user disruption to re-submit such jobs manually.

Automatic Retry capability for failed Job
Specify retry strategy between 1 and 10 attempts
The Job Processor will retry the failed jobs automatically without manual intervention

Thin Client Admin Settings

Administrators can set default columns for all Thin Client users in Autodesk Vault 2024.

Backup/Restore Enhancements

In Vault 2024, there is more flexibility in the Vault Server backup command to assist with backing up specified data components. This enhancement helps customers with large Vault environments that cannot use the existing backup command in the Vault Server.

Participants: Intuitive Vault Tools in 2024 for Project Collaboration

Thin Client – Enhancements

Select the Vault you need at the time of signing into the Thin Client and the Vault drop-down list shows the available Vault on the Server.

Improve interactions and control within the Thin Client interface with control for Expanding or Collapsing All for Objects with Structure.

Advanced Search capabilities paired with a modern UI for better experience:

Save searches as bookmarks in the browser
Search individual workspaces or multiple workspaces
Search workspaces of choice with search parameters
Search current folders and sub-folders
Find latest version only

Inventor Read-Only Vault Add-in

The Vault Add-in in Autodesk Vault Professional 2024 is available in Inventor Read-only, so users can open files and get access to Vault data directly from Inventor Read-only allowing users to review models efficiently without going between applications.

Learn More about Autodesk Vault 2024

Check out the Autodesk Vault 2024 Help

section for more information regarding the 2024 release.

Ready to get Autodesk Vault 2024?

Discover how Autodesk Vault 2024 can streamline your workflow, increase productivity, and optimise your design process.

Vault is available from Design Consulting on-premise or cloud, so contact us to discuss which instance suits you best.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

What’s New in Autodesk Inventor Professional 2024

March 29, 2023

| No Comments

| Autodesk Inventor, Collections, Inventor, Inventor Professional, Product Design & Manufacturing Collection

What's New in Autodesk Inventor Professional 2024

Autodesk Inventor Professional 2024 is out with a focus on new features and over 100 customer driven enhancements for MBD, Part Modeling, Assembly, Drawings, Graphics, Performance, iLogic, Content Center and the API.

Here’s the top features and enhancements in Autodesk Inventor Professional 2024.

General Enhancements

General

It is now possible to set Perspective With Ortho Faces as the default view setting in both Document Settings and Application options.

Set ‘Perspective With Ortho Faces’ as the default view setting

Application Options:

Display tab > Appearance > Settings >
Display Appearance dialog > Initial Display Appearance > Projection

Modeling document:

Document Settings > Standard tab > Display Appearance >
Settings > Initial Display Appearance > Projection

Graphics

Render Size Limit Removed

Inventor Studio has had, until now, an imposed 4096 x 4096 pixel rendering output. The limitation has been removed and Inventor Studio will render images up to 16K x 16K resolution, depending on what your graphics card supports.

Custom Environment Image Support

The workflow for using custom hdr and exr images with IBL lighting styles is much improved and is supported for both CPU and GPU ray tracing.

Support for IBL backgrounds

GPU ray tracing now supports rendering with IBL backgrounds.

The following enhancements in Graphics have been added:

Section view tools expanded
- Flip
- Move
- Rotate
- End cap
Section options added to mini-toolbar
Edit and suppress section views in “View Representations”
Control Section View end cap preview during section view plane dragging
<= 500 parts – end cap shown by default
> 500 parts – end cap not shown
Override the setting by selecting or deselecting the option in the mini-toolbar
Use custom IBL environment
GPU ray tracing now supports:
- IBL environments
- Threads
Ray Tracing UI update

Product Design and Manufacturing Collection
Call for Price
- View More
Inventor Professional 2024
Call for Price
- View More
Autodesk Inventor Training Introduction Course
$1,649.00
- Add to cart
Autodesk Inventor: iLogic training
$1,650.00
- Add to cart

Part Modeling Enhancements

Sheet Metal

Enhanced profile detection on overlapping sketches

Parameter Window

Text and Boolean values can now be exported

Boolean has the options of:
- Text (True or False)
- Number (0 or 1)
- Yes or No
Hardness

Mark Feature

New behaviour section:
- Project
- Wrap (new)
Choose direction for mark
Mark across multiple coplanar surfaces

Assembly Modeling Enhancements

Oriented Minimum Bounding Box

Rotate Bounding Boxes to match angle of parts
Represents footprint of components more accurately
Available in:
- Simplify
- Derive
Simplify – bounding box edges measured and appear in parameter window

Patterns

Rectangular Pattern

You can now select a revolved face, cylindrical or conical, to define the direction for a component pattern. The Pattern Component command uses the face axis to define the pattern direction. Use the standard controls to flip the direction.

It is not necessary to activate the selector when using an origin axis, clicking the flyout activates the selector and chooses the selected axis. The direction selection does not change with the activation of the selector, you must also select a new direction.

Circular Pattern

Circular pattern for components is enhanced to provide incremental and fitted positioning methods.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

New: Finish Feature

The new Finish feature enables you to not only specify the appearance of your parts, components and assemblies, but also the manufacturing process such as material coating or surface finish.

All applied finishes are listed in a new Finishes folder in the browser. You can re-order the finishes in the browser node, suppress, rename or delete them.

In Drawings, a new “Parameters – Finish” type category is added to the Leader Text and the Format Text dialogs to enable Finish information to be used in drawing notes. These parameters will automatically be updated if changed in the modelling environment. This enhances your drawing by adding additional manufacturing process information to the documentation.

Each Finish feature setting has a parameter with corresponding unique name in the “Finish Parameters” category in the Parameters dialog. All Finish parameters can be exported. Exported parameters are displayed in iProperties. Note that change in iProperties doesn’t affect the model finish feature parameters.

The Finish feature can be captured in Model States, iPart an iAssembly.

3D Annotations (MBD) Enhancements

3D Weld Symbols

3D weld symbols are now available as one of the 3D annotation types. Create and edit weld and subweld symbols in a part or assembly model. Then, retrieve the associative symbols in drawings. 3D weld symbols are included in exports to 3D PDF, DWF, and Shared Views.

3DA Envelope Requirement Modifier

The Envelope Requirement modifier is now available for hole notes and dimensions. In the annotation preview, click on a dimension and in the toolbar select the envelope modifier.

Annotation Scale

In this release, 1:5 scale is added to the annotation scale drop down per DIN EN ISO 55455

All Over Modifier

The All Over modifier is now available for feature control annotations.

Drawing Enhancements

Sheet Property

Sheet Name is added as a Sheet Property and can be used in text.

It is now easier to recognize if a filter is applied to the parts list. An icon in the browser and the Parts List dialog displays a filter symbol when one is applied.

Break Line

A change was made to the “Break Out Line” object type for ISO standards. Until now, the “Visible” layer on “Thickness” was set to 0.5 mm. Now, as per the updated standard, the “Break Out Line” object type uses the “Break Line” layer by default with a thickness of 0.25 mm. This also applies to DIN/GB/JIS standards.

Many 2D weld symbols in drawings were updated as per ISO/BSI/DIN/GB standards. The newly introduced 3D weld symbols use ISO, DIN and ANSI standards. The changes include updating the names of fields and adding new fields depending on the selected weld type. The changes were made to Square Butt Welds, Fillet Welds, or Plug Welds for example.

Drawing Line Colour Controls

With this release, color scheme settings can be set for drawing sketch elements. Until now, it was difficult to work with elements if their color conflicted with the sheet color setting. The new Sketch options under the Drafting heading allow the color of sketch elements to be set for the drawing environment.

Revision Clouds

Revision clouds are full-fledged Inventor objects and no longer in the SDK. Add them to drawing sheets or views, move them around, add or delete vertices, and like other annotation styles the formatting is managed using the Styles Editor. Being sketch-based they can be edited either in their cloud state or from the sketch.

Edge Symbol

Starting from this release of Inventor, you can define an Edge Symbol based on ISO 13715:2019 standard. The new Edge Symbol command is added to the Symbols panel of the Annotate tab. The Edge symbol style is added to the drawing Style and Standard Editor.

Tube and Pipe Enhancements

Custom Elbows

In previous versions of Inventor, it was only possible to add a 45 or 90 degree elbow to a rigid pipe run. Starting from this release , it is now possible to apply custom angled elbows.

When a style with Custom Elbows is activated, select the Custom Elbows option in the Route dialog and either use the curved arrow manipulators, or type a value to angle the elbow relative to the current position.

When dragged by 45 or 90 degrees, the route is populated with a rigid elbow. Rigid elbow is placed as a Standardpart.
When dragged to other than 45 or 90 degrees, the route is populated with a custom elbow. Custom elbow is placed as a Custompart

Minimum and maximum angles are defined in the Custom Angle (CA) column within the Content Center part.

New Custom Elbow Styles

New styles which support the use of custom elbows (Custom Elbow 45, Custom Angle 90) are available in the Tube and Pipe Styles dialog.

iLogic Enhancements

Vault Workflow Enhancements

With Inventor 2024, working with Vault has never been easier. New functions added to iLogic allow Inventor to check out, get files, search Vault, and much more as part of your automations. Vault code snippets added to the editor make it easy to quickly get started.

Add a Custom Content Center Part

You now have the ability to place and define a custom part in iLogic. Create a custom part in Content Center, or insert a standard Content Center part as a custom part, and create a rule to capture the current state. The “AddCustomConterCenterPart” function is created. When you edit the part and repeat the capture operation, iLogic rule updates accordingly. Also, when you edit the rule, the part updates as well.

Close an Open Form

A new function to close an open form is added in this release of Inventor. Note that this is only available for non-modal forms.

Interoperability Enhancements

UCS Support

Both JT and STEP support the option to include UCS on import.

OBJ Import

Performance when opening OBJ files has been improved.

Solid Edge

Support for reading SolidEdge 2023 is added.

Parasolid

Support for importing and exporting Parasolid version 35 is added.

Access to Manual Inspection added to Fusion 360 tools

From within Inventor you can send a part (.ipt) file to Fusion 360 and create manual inspection tasks.

Fusion Exports Workflow

If a change has occurred in the Inventor model state or design view used for a Fusion 360 export, and you click Open in Fusion 360 in the export context menu, you are notified that the Inventor model and Fusion 360 model are out of sync and are given the option to update the Fusion 360 model before opening it.

Product Design and Manufacturing Collection
Call for Price
- View More
Inventor Professional 2024
Call for Price
- View More
Autodesk Inventor Training Introduction Course
$1,649.00
- Add to cart
Autodesk Inventor: iLogic training
$1,650.00
- Add to cart

Learn More about Autodesk Inventor 2024

Check out the following links for more information:

Autodesk Inventor 2024 Help

Inventor feedback community

Inventor Ideas

Inventor blog

Inventor LinkedIn community

Autodesk University

Ready to get Inventor Professional 2024?

Discover how Autodesk Inventor 2024 can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

What’s New in Autodesk AutoCAD 2024

March 28, 2023

| No Comments

| AutoCAD, AutoCAD, AutoCAD Electrical, AutoCAD Mechanical, AutoCAD MEP, Autodesk Collections, Autodesk Inventor, BIM 360, CDE (Common Data Environment), Civil 3D, Collections, Construction, Data Management for Civil and Infrastructure, Infrastructure, Product Design & Manufacturing Collection, Revit, Revit

What's New in Autodesk AutoCAD 2024

Autodesk AutoCAD 2024 is out with a focus on Accelerating Creativity, Tailored Functionality and a Connected Design Experience.

Autodesk AutoCAD 2024 Overview

AutoCAD including specialized toolsets Annual Subscription
Call for Price
- View More
Architecture Engineering and Construction Collection
Call for Price
- View More
AutoCAD LT 2024 Annual Subscription
Call for Price
- View More
AutoCAD Revit LT Suite 2024 Annual Subscription
Call for Price
- View More

Accelerating Creativity

Focus on quickly creating and collaborating on innovative solutions using assistive machine learning technology to improve design workflows.

The performance enhancements in AutoCAD 2024 really stand out—both with how fast it opens and the speed of switching between models and view ports. It’s much faster than any previous versions.

Michael Shurgalla

Senior Design Technology Specialist, Merrick

Activity Insights

Bridge information gaps in collaborative AutoCAD workflows and stay connected to essential data throughout project lifecycles

My Insights Macro Advisor & Dashboard

Provides valuable information to you at the right time and in the right context to assist with steps that you can automate.

Count & Blocks Palette

Counting blocks is now up to 70% faster and reusing design content with blocks is up to 47% faster.

Smart Blocks: Placement and Replacement

Automatically place blocks in your drawing based on where you’ve inserted the same ones thus far, reducing the number of clicks and saving you valuable time in the process.

Quickly find the blocks you need with machine learning powered functionality, delivering powerful time-saving automations.

Tailored Functionality

Organisations can customise AutoCAD for their industries, empowering teams to build and run discipline-specific routines and workflows.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

ACAD for Mac – M series chip

Added support for Apple Silicon increased AutoCAD for Mac’s overall performance by 2x*

Connected Design Experience

Autodesk creates an ecosystem of industry-leading design software and technology partners.

Web AutoLISP APIs

AutoLISP, a staple feature of AutoCAD desktop, now enables customisations to automate a sequence of commands in AutoCAD on the web

AutoLISP

AutoCAD LT now includes AutoLISP.

Leverage thousands of previously written programs created for use in AutoCAD-based programs. AutoCAD LT supports AutoLISP Source (LSP) files, compiled LSP files, Fast-load AutoLISP (FAS), and Visual LISP Applications (VLX) files.

Markup Import & Markup Assist

Faster cross-platform markup workflows through expanded machine learning capabilities & essential experience improvements

Markup Import & Markup Assist

Faster cross-platform markup workflows through expanded machine learning capabilities & essential experience improvements

Migrating Custom Settings

The CUI, tool palettes, and templates have undergone enhancements to facilitate the transfer of customised files and locations.

To utilise personalized configurations:

Access the Autodesk AutoCAD <product and release> folder drop-down list from the Windows Start menu. Choose Migrate From a Previous Release.
In the resulting Migrate Custom Settings dialog box, specify the release you wish to migrate from.
Select the customized settings you want to transfer to the latest release.

Tab Improvements

The Start, File and Layout Tabs have been improved.

Trace Updates

Enhancements to the Trace environment continue, with the introduction of the COPYFROMTRACE command and additional settings controls on the toolbar.

Autodesk Docs Improvements

The following improvements have been made to Autodesk Docs:

Improved support and performance when viewing large files on Autodesk Docs.
Improved Desktop Connector resulting in improved performance displaying a drawing in the Start tab and opening a drawing from Autodesk Docs.
Improved navigation on the Start tab for drawings stored on Autodesk Docs

AutoCAD 2024 Vs AutoCAD LT 2024

AutoCAD 2024 offers more advanced features for 3D modeling, customisation with add-on apps and APIs, rendering, and CAD standards, among other features, while AutoCAD LT 2024 is a more affordable version that still offers many of the essential features for 2D drafting, annotation, and automation.

Features	AutoCAD 2024	AutoCAD LT 2024
Find and replace blocks based on other blocks in your drawing	Yes	No
Stay informed of relevant file changes with details of multi-user activities in a DWG file	Yes	No
Utilise AutoLISP programs to automate repetitive tasks and enhance workflows	Yes	Yes
Extend AutoLISP programs with third-party automation libraries, and utilize specialised editors to write and debug programs	Yes	No
Create and edit 2D geometry	Yes	Yes
Annotate drawings with traces, text, dimensions, leaders & tables	Yes	Yes
Customize the ribbon and tool palettes	Yes	Yes
Attach and import data from PDF files	Yes	Yes
Share and use data from DGN files, Navisworks, & Bing Maps	Yes	Yes
Create and edit 3D models with solids, surfaces, & mesh objects	Yes	No
Customize with add-on apps and APIs	Yes	No
Extract object data to tables	Yes	No
Create renderings with lighting, materials, & visual styles	Yes	No
Apply and monitor CAD standards	Yes	No
Automate counting objects and blocks	Yes	Yes
Share drawings with colleagues directly from AutoCAD or AutoCAD LT	Yes	Yes
Import feedback and incorporate changes with a click of a button	Yes	No
Learn new features and workflows to work faster with My Insights	Yes	No

What's New in Specialised Toolsets

AutoCAD Architecture and MEP 2024

AEC3DPRINT

With AEC3DPRINT command, you can natively export the AEC objects to an STL file format that’s compatible with 3D printing without converting to 3D solids.

Enhanced Design Center Content

New MVBlocks and block references are available in Design Center.

More than 200 new MVBlocks and block references are added to the AutoCAD Architecture (US Imperial) and AutoCAD Architecture (US Metric) content packs for Design Center. The added content is available in metric profile for non-English languages. The content includes external lighting, bathroom accessories, furniture, site, kitchen fittings, and more.

Refer to the 2024 Help file for further information

AutoCAD Mechanical 2024

ANSI/ASME Standard Revision Update

The section line symbol within AutoCAD Mechanical is updated to support the AWS Y14.3 – 2012 standard revision. To support AWS Y14.3 – 2012, all aspects of the section line symbol are revised to correspond with AWS Y14.3 – 2012.

AutoCAD Mechanical continues to support the AWS Y14.3 – 2003 standard revision to allow documents created in previous releases to be opened, edited, and saved without updating the section line symbol standard. By supporting AWS Y14.3 – 2012 and AWS Y14.3 – 2003, you can annotate new and as-built designs using the required standard revision.

ISO Standard Revision Update for Taper and Slope Symbols

The taper and slope symbol within AutoCAD Mechanical is updated to support the ISO 3040:2016(E) standard revision. To support the ISO 3040:2016(E), all aspects of the taper and slope symbol is revised to correspond with ISO 3040:2016(E).

AutoCAD Mechanical continues to support the ISO 3040:2009(E) standard revision to allow documents created in previous releases to be opened, edited, and saved without updating the taper and slot symbol standard. By supporting ISO 3040:2016(E) and ISO 3040:2009(E), you can annotate new and as-built designs using the required standard revision.

Refer to the 2024 Help file for further information

AutoCAD Plant 3D 2024

Ortho Bill of Materials (BOM)

The Ortho Table Setup dialog box includes simplified options and more table capabilities for orthographic drawings. You can now add the Bill of Materials (BOM) for piping, equipment, steel, as well as nozzle and spool lists into ortho drawings.

Spec and Catalog Editor Enhancements

The Edit Parts and Edit Properties functions are enhanced in both Spec and Catalog Editors.

Edit parts within a selected parts family for inclusion in a spec sheet or catalog.

Refer to the 2024 Help file for further information

Pipe Spec Viewer Enhancements

View all parts available for a specific size in the selected spec. Use the search box to look for specific components in the Pipe Spec Viewer.

Any changes to the size and spec lists are both updated in Pipe Spec Viewer and the Part Insertion panel on the ribbon.

Ortho Single-Line Piping Enhancements

In this release, ortho single-line piping offers more enhancements including a new interface for some piping criteria providing better control when you display piping in a single-line representation in orthographic drawings.

AutoCAD Map 3D 2024

Coordinate System Update

AutoCAD Map 3D 2024 supports the new coordinate systems in the following categories:

SnakeGrid EWR2
NAD83(CSRS) / Alberta 3TM

Refer to the 2024 Help file for further information

AutoCAD Electrical 3D 2024

Pipe Spec Viewer Enhancements

Create a schematic symbol table from schematic reports.

The schematic report lists the symbols used in the project along with its description in a table. You can also surf through a particular symbol that is used in various locations of the project.

Wire Type Synchronisation

Wire type can now be synchronized for all wires in the network with the same signal code across the drawings.

In previous releases, when you update the type of the wire connected to the source arrows, the destination wire type was not updated. In AutoCAD Electrical 2024 toolset, when the wire type is updated at the source arrow, all wires in the network are updated to the same wire type of the source. New wire layers are created along with its properties if the destination drawing doesn’t contain the new wire type.

Refer to the 2024 Help file for further information

Discover the Right CAD Tool for Your Engineering Needs

Choosing between AutoCAD and AutoCAD Mechanical? Our free eBook offers a detailed comparison to help you make the best choice for your design projects. Gain insights into key features, pricing, and real-world applications.

Download the eBook now to make an informed decision and optimise your workflow.

Ready to get AutoCAD 2024?

Discover how Autodesk AutoCAD 2024 can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

AutoCAD 2024 Brochures

Connected Infrastructure Design with the Autodesk Architecture Engineering and Construction Collection

March 24, 2023

| No Comments

| AutoCAD, AutoCAD, AutoCAD Mechanical, Autodesk Collections, Autodesk Inventor, BIM 360, CDE (Common Data Environment), Civil 3D, Collections, Construction, Data Management, Data Management for AutoCAD, Data Management for Civil and Infrastructure, Infrastructure, Infrastructure, Navisworks, Product Design & Manufacturing Collection, Revit, Revit

Connected Infrastructure Design with the Autodesk Architecture Engineering and Construction Collection

Civil engineering projects involve complex designs and planning. For a successful project, the various components of the design and planning process must work together seamlessly. Autodesk’s Architecture Engineering and Construction Industry Collection offers a suite of software tools that allow for connected design in infrastructure projects. The collection integrates different applications, including Civil3D, Revit, Autodesk Docs, and InfraWorks, to enable civil engineers to work collaboratively and efficiently. This blog post will explore how Civil3D works with other applications in the collection, the benefits of connected design for civil engineers, and infrastructure projects.

How Does Civil3D Work With Other Applications in the Collection?

Civil3D is a software tool for civil engineers that helps in the design and analysis of infrastructure projects such as roads, highways, and land development. Civil3D works seamlessly with other applications in the collection to allow for connected design in infrastructure projects.

Revit is a software tool for architects and engineers that allows for the creation of detailed building models. Revit can import Civil3D data, allowing architects to see how buildings interact with the surrounding infrastructure.

Autodesk Docs is a cloud-based document management system that enables teams to collaborate on project documentation in real-time. Civil engineers can use Autodesk Docs to manage project documentation, including design plans, construction schedules, and specifications.

InfraWorks is a software tool that allows for the creation of 3D models of infrastructure projects. Civil engineers can use InfraWorks to visualize the impact of infrastructure projects on the surrounding environment. InfraWorks can also import data from Civil3D, enabling the creation of detailed 3D models of infrastructure projects.

The Benefits of Connected Design for Civil Engineers and Infrastructure Projects

Connected design offers several benefits for civil engineers and infrastructure projects. Let’s explore some of these benefits in more detail.

Improved Collaboration

One of the main benefits of connected design is improved collaboration between engineers and other members of the project team. By using software tools like Civil3D, Revit, Autodesk Docs, and InfraWorks, engineers can work together in real-time to make changes and updates to the model. This collaborative approach can lead to more efficient and effective decision-making, which can ultimately save time and reduce errors in the design process. Connected design also allows for better communication between team members, as everyone has access to the same data and can easily share their ideas and feedback.

Streamlined Design Process Connected design also streamlines the design process for civil engineers. With software tools like Civil3D, engineers can create accurate and detailed 3D models of their designs, which can be easily imported into other applications like Revit and InfraWorks. This integration between different software tools eliminates the need for manual data transfer, which can be time-consuming and error-prone. The streamlined design process also allows for faster iteration and decision-making, as engineers can quickly make changes and updates to the model based on feedback from other team members.

More Accurate and Detailed Modeling

Connected design enables civil engineers to create more accurate and detailed models of their designs. With software tools like Civil3D, engineers can create 3D models that accurately represent the real-world conditions of the project site. This level of detail allows engineers to analyze and test their designs more thoroughly, which can help identify potential issues and prevent costly mistakes during construction. More accurate and detailed modeling also enables engineers to optimize their designs for efficiency, reducing the overall cost and environmental impact of the project.

Better Data Management Connected design also provides better data management for civil engineers. With software tools like Autodesk Docs, engineers can store and manage all project data in one central location. This eliminates the need for manual data transfer and ensures that all team members have access to the most up-to-date information. Better data management also enables engineers to track changes and updates to the design over time, which can be helpful for future maintenance and repairs.

Enhanced Visualisation

Finally, connected design enables enhanced visualization for civil engineers. With software tools like InfraWorks, engineers can create 3D models of entire cities and infrastructure projects, which can be used to visualize the impact of the project on the surrounding environment. Enhanced visualization can also be helpful for presenting designs to stakeholders and the public, as it provides a clear and detailed representation of the project.

Unlocking the Potential of Connected Civil Engineering Design with Autodesk's AEC Industry Collection

Civil 3D, InfraWorks, and Revit are all part of the Autodesk Architecture, Engineering, and Construction (AEC) industry collection, and are designed to work together for connected design workflows.

InfraWorks is used for creating and visualizing large-scale infrastructure projects, such as roads, highways, and airports. It provides tools for creating 3D models of proposed designs, analyzing the impacts of these designs on the surrounding environment, and sharing and collaborating with other stakeholders.

Civil 3D, on the other hand, is focused on detailed civil engineering design, such as grading, drainage, and road design. It allows for the creation of detailed design models, analysis of earthwork quantities, and the creation of construction documentation.

Revit is a BIM software that provides tools for creating and managing detailed 3D models of buildings and structures. It can be used to create and analyze structural designs, as well as to manage building information throughout the design and construction process.

When used together, these tools enable a connected design workflow that allows for the creation and analysis of both the infrastructure and the buildings and structures that will be integrated into it. InfraWorks can be used to create a preliminary design of the infrastructure project, which can then be imported into Civil 3D for detailed design and analysis. Revit models can also be integrated into the design process, allowing for the creation of detailed building information models that can be analyzed in the context of the surrounding infrastructure.

Overall, the connected design workflow enabled by these tools allows for greater collaboration and efficiency throughout the design and construction process, leading to better outcomes for infrastructure projects.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

AutoCAD vs. AutoCAD Civil 3D vs. Revit

AutoCAD is a general-purpose CAD software used for 2D drafting and 3D modeling, whereas Civil 3D is specifically designed for civil engineering tasks such as road design and land development. Revit is a BIM software used for building design and construction documentation. While AutoCAD and Civil 3D are more focused on geometric design, Revit allows for the creation of detailed 3D models with parametric design features. Civil 3D and Revit also offer collaboration features such as cloud-based sharing and real-time updates, which are not available in AutoCAD. The choice between these software depends on the specific needs and tasks of the project.

Features	AutoCAD	Civil 3D	Revit
2D Drafting	Yes	No	Yes
3D Modeling	Yes	Yes	Yes
Geometric Design	Yes	Yes	Limited
Civil Engineering Design	No	Yes	Yes
Road Design	No	Yes	Limited
Land Development	No	Yes	Limited
BIM Features	No	No	Yes
Parametric Design	No	No	Yes
Cloud-Based Sharing	No	Yes	Yes
Real-Time Updates	No	Yes	Yes
Bridge Design	No	Yes	Yes
Topography	No	Yes	Yes
Civil Structural Engineering	No	Yes	Yes

Civil 3D vs. Infraworks

Civil 3D and InfraWorks are both part of the Autodesk AEC industry collection and are commonly used for civil engineering and infrastructure design projects. While they share some similarities, they have distinct differences in terms of their focus and capabilities.

Civil 3D is primarily focused on detailed design for civil engineering projects, such as grading, drainage, and road design. It is a powerful tool for creating accurate 3D models of proposed designs and analysing earthwork quantities, as well as for creating construction documentation. Civil 3D is ideal for engineers who need precise control over the design process and require a high level of detail and accuracy.

InfraWorks, on the other hand, is focused on conceptual design and visualization for large-scale infrastructure projects, such as highways, airports, and rail networks. It provides tools for creating 3D models of proposed designs, analyzing the impacts of these designs on the surrounding environment, and sharing and collaborating with other stakeholders. InfraWorks is ideal for early-stage design, where the focus is on understanding the potential impacts of a project and communicating that information to stakeholders.

When used together, Civil 3D and InfraWorks enable a connected design workflow that allows for the creation and analysis of both the detailed civil engineering design and the larger-scale infrastructure design. Civil 3D can be used to create detailed design models, which can then be imported into InfraWorks for visualisation and analysis in the context of the surrounding environment. InfraWorks models can also be used to create preliminary designs that can be refined and detailed in Civil 3D.

A feature comparison matrix for Civil 3D and InfraWorks might include the following:

Feature	Civil 3D	InfraWorks
Detailed design	Yes	No (focused on conceptual design)
Earthwork quantities	Yes	No
Terrain modeling	Yes	Yes
Analysis tools	Yes	Yes
Visualisation	Limited (focused on detailed design)	Extensive (focused on conceptual design)
Collaboration	Limited (focused on detailed design)	Extensive (focused on conceptual design)

Overall, the connected design workflow enabled by Civil 3D and InfraWorks allows for greater collaboration and efficiency throughout the design and construction process, leading to better outcomes for infrastructure projects. Civil 3D is ideal for detailed design, while InfraWorks is ideal for early-stage design and visualisation.

Empowering Civil Engineering Design with Dynamo for Civil 3D: Streamline Workflows and Boost Efficiency

Dynamo for Civil 3D is a powerful tool that allows users to automate complex design tasks and create custom workflows for Civil 3D. Dynamo is a visual programming language that can be used to create custom scripts that automate repetitive design tasks, such as creating road alignments, profiles, and surfaces.

With Dynamo, Civil 3D users can create custom tools and workflows that are tailored to their specific project needs. For example, users can create scripts that automatically generate designs based on predefined parameters, or scripts that analyze and optimize designs for cost and efficiency.

The use of Dynamo for Civil 3D can significantly streamline the design process, reduce errors, and improve project outcomes. By automating repetitive tasks, engineers and designers can focus on higher-level design decisions and creative problem-solving.

Connected Infrastructure Design

The Autodesk Architecture Engineering and Construction Collection is a powerful suite of software programs that can help architects create better designs and collaborate more effectively with other professionals in the construction industry. By using programs such as Revit, Navisworks, and Docs, architects can create digital models of buildings and share them with other stakeholders, streamlining the design process and reducing errors. By collaborating with MEP/HVAC, Structural and Civil engineers and designers, architects can ensure that their designs are not only visually appealing but also practical and functional, resulting in better-performing buildings that meet safety and regulatory requirements.

Ready to get your Design Connected?

Discover how Autodesk Architecture Engineering and Construction Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Architecture Engineering and Construction Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Connected Architecture Design with the Autodesk Architecture Engineering and Construction Collection

March 23, 2023

| No Comments

| Advance Steel, AutoCAD, AutoCAD, AutoCAD Mechanical, AutoCAD MEP, Autodesk Collections, Autodesk Inventor, CDE (Common Data Environment), Civil 3D, Collections, Data Management, Data Management for AutoCAD, Data Management for Civil and Infrastructure, Navisworks, Product Design & Manufacturing Collection, Revit, Revit

Connected Architecture Design with the Autodesk Architecture Engineering and Construction Collection

The field of architecture has come a long way from hand-drawn sketches and blueprints. With the rise of technology, architects now have access to a wide range of software tools that can help them design and construct buildings more efficiently. One such tool is the Autodesk Architecture Engineering and Construction (AEC) Collection, a suite of software programs designed to facilitate connected design and collaboration among architects, engineers, and other construction professionals.

Understanding Autodesk AEC Collection

The Autodesk AEC Collection is a comprehensive suite of software programs that includes tools for building information modeling (BIM), 2D and 3D design, visualization, and analysis. It includes software programs such as Revit, AutoCAD, Navisworks, and Docs, among others. By using the AEC Collection, architects can create, manage, and share their design data more effectively, resulting in a more streamlined and efficient design process.

The Benefits of Connected Architecture Design

Connected design refers to the process of collaborating with other professionals involved in the construction process. By working together and sharing information, architects, engineers, and builders can reduce errors, speed up the design process, and ultimately create better buildings. Connected design also enables architects to incorporate feedback from other stakeholders, resulting in a more comprehensive and effective design.

Collaborating with Revit in AEC Collection

One of the key tools in the AEC Collection is Revit, a BIM software program that allows architects to design and collaborate on building projects in real-time. Revit enables architects to create a digital model of a building, complete with all the necessary information, such as dimensions, materials, and structural details. This model can then be shared with other professionals in the construction process, such as engineers and builders, to facilitate collaboration and ensure a more efficient design process.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

Connecting with Navisworks and Docs

Navisworks and Docs are two other software programs included in the AEC Collection that can help streamline the design process. Navisworks is a project review software that allows architects and engineers to visualise and analyse their designs in 3D. This can help identify any potential clashes or issues before construction begins, reducing the likelihood of errors and delays. Docs, on the other hand, is a cloud-based collaboration tool that enables architects to share and manage design data with other professionals in real-time, from any location.

AutoCAD vs. AutoCAD Architecture vs. Revit

While all three software programs are used in the architecture industry, they serve different purposes. AutoCAD is a 2D drafting and design software program, while AutoCAD Architecture is a 3D design tool specifically for architects. Revit, on the other hand, is a BIM software program that enables architects to create digital models of buildings with all the necessary information. While each program has its own strengths and weaknesses, architects can use them together in the AEC Collection to create a more comprehensive and effective design.

Tool/Command	AutoCAD	AutoCAD Architecture	Revit
2D drafting	✔️
3D design		✔️	✔️
Walls		✔️	✔️
Doors		✔️	✔️
Windows		✔️	✔️
Stairs		✔️	✔️
Roofs		✔️	✔️
Slabs/Floors		✔️	✔️
Structural elements			✔️
MEP/HVAC			✔️
Building Information Modelling (BIM)			✔️

Collaboration with Other Disciplines in AEC Collection:

The AEC Collection also includes software programs designed for MEP/HVAC, Structural and Civil engineering and design. By working together with these professionals, architects can ensure that their designs are not only visually appealing but also practical and functional. MEP/HVAC software programs such as AutoCAD MEP and Revit MEP enable architects to create accurate and detailed mechanical, electrical, and plumbing (MEP) systems. This ensures that these systems are integrated seamlessly into the building design, resulting in better performance and energy efficiency.

Structural engineering software programs such as Revit Structure and Robot Structural Analysis can help architects design structurally sound buildings that can withstand various forces and loads. By incorporating these programs into the design process, architects can create more efficient and cost-effective designs that meet safety requirements.

Civil engineering software programs such as AutoCAD Civil 3D and InfraWorks enable architects to design roadways, bridges, and other infrastructure projects with accuracy and precision. By working together with civil engineers, architects can ensure that their designs are integrated into the surrounding environment and meet the necessary safety and regulatory requirements.

Connected Architecture Design

Ready to get your Design Connected?

Discover how Autodesk Architecture Engineering and Construction Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Architecture Engineering and Construction Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Connected Design with the Autodesk Architecture Engineering and Construction Collection

March 22, 2023

| No Comments

| 3ds Max, Advance Steel, AutoCAD, AutoCAD, AutoCAD Electrical, AutoCAD Mechanical, AutoCAD MEP, Autodesk Collections, Autodesk Inventor, CADmep, CDE (Common Data Environment), Civil 3D, Collections, Data Management, Data Management for AutoCAD, Data Management for Civil and Infrastructure, estMEP, Infrastructure, Navisworks, Product Design & Manufacturing Collection, Reality Computing, Revit, Revit, Simulation, Vault, Visualisation

Connected Design with the Autodesk Architecture Engineering and Construction Collection

In today’s fast-paced world, the construction industry is continuously evolving with new technology advancements. As technology advances, it becomes essential to have an efficient and connected design process that incorporates design, analysis, and visualization. The Autodesk Architecture, Engineering and Construction Collection is a comprehensive suite of software programs that facilitate this process. This blog post will discuss how the Autodesk Architecture, Engineering and Construction Collection can benefit various industries by connecting design, analysis, and visualization.

Connected Design Workflow: How Software Programs Work Together

The Autodesk Architecture, Engineering and Construction Collection consists of multiple software programs that allow for a connected design workflow. The software programs in the collection work together seamlessly, allowing for efficient design, analysis, and visualization. The collection includes software programs such as AutoCAD, Revit, Navisworks, and more. Each software program is designed to perform a specific task, and when used together, they create a comprehensive design workflow.

Designing with Precision: AutoCAD and Revit in the AEC Collection

The first step in any construction project is design. The Autodesk Architecture, Engineering and Construction Collection includes various software programs that aid in the design process. AutoCAD is a widely used software program that allows for 2D and 3D drafting. AutoCAD is used to create detailed drawings, and it is compatible with other software programs in the collection. Revit is another software program that is used in the design process. Revit allows for BIM (Building Information Modelling), which helps in creating a detailed 3D model of the building. By using Revit, the design process becomes more efficient, as the software program allows for collaboration between various stakeholders.

Revit and Civil 3D: Enhancing Infrastructure and Construction Projects with 3D Modeling and Efficient Design Collaboration

Revit and Civil 3D are commonly used in the AEC industry for infrastructure and construction projects. Revit creates 3D models of buildings, while Civil 3D designs infrastructure projects. Used together, they complement each other and improve the design process by identifying potential design issues in 3D models. Changes made in one software program are automatically updated in the other. This streamlines the design process and helps identify issues early in the design phase.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

How Revit and Advance Steel Work Together to Streamline Steel Design and Fabrication

Revit and Advance Steel are two software programs that can be used together in the architecture, engineering, and construction (AEC) industry. Revit is a building information modeling (BIM) software that is used to create 3D models of buildings, while Advance Steel is a 3D modeling software that is used to design steel structures.

When used together, Revit and Advance Steel can improve the efficiency and accuracy of the design process. For example, an engineer can create a 3D model of a building in Revit and then export it to Advance Steel to design the steel structure. The engineer can then import the steel structure design back into Revit to ensure that it is compatible with the rest of the building design.

In addition, when changes are made in one software program, they are automatically updated in the other software program. This means that any changes made to the steel structure design in Advance Steel will be automatically reflected in the building design in Revit, and vice versa.

Using Revit and Advance Steel together can also help identify potential design issues early in the design phase. The 3D models created in Revit and Advance Steel can be used to identify clashes or conflicts that may have been missed in 2D design drawings. This can help save time and reduce the risk of errors and rework later in the project.

In conclusion, Revit and Advance Steel are powerful software programs that can be used together to improve the efficiency and accuracy of the design process in the AEC industry. The ability to export and import design elements between the two software programs and ensure that changes are automatically updated can streamline the design process and help identify potential issues early in the design phase.

Efficient Analysis with Navisworks and Autodesk Robot Structural Analysis Professional

The Autodesk Architecture, Engineering and Construction Collection includes software programs that aid in the analysis process. Navisworks is a software program that allows for coordination and simulation of construction projects. Navisworks helps in identifying clashes, reducing errors and rework, and creating more efficient designs. Additionally, Autodesk Robot Structural Analysis Professional is used to perform structural analysis of buildings. The software program helps in identifying structural deficiencies and optimizes the design process.

Bringing GIS Mapping and Connected Design Together: A Comprehensive Approach with Autodesk's AEC Collection

In today’s world, design and construction projects require a more comprehensive approach than ever before. With the Architecture Engineering and Construction (AEC) Collection from Autodesk, architects, engineers, and construction professionals have access to a suite of powerful tools that can help them collaborate and work more efficiently. One of the most valuable features of the AEC Collection is its ability to integrate with Geographic Information Systems (GIS) mapping, providing a more accurate and detailed view of project sites and landscapes.

AutoCAD Map 3D is a powerful software tool for GIS mapping, which allows users to access, manage and analyse spatial data. With AutoCAD Map 3D, users can easily import and export data from various sources, such as aerial imagery, satellite imagery, and other GIS data. This software also provides a wide range of tools for data analysis, visualization and editing, making it an essential tool for GIS professionals. Some of the key features of AutoCAD Map 3D include 3D modelling and visualisation, data query and analysis, and advanced geospatial analysis tools. By leveraging these features, users can create accurate and comprehensive maps and spatial data sets for a wide range of applications.

GIS mapping is a critical component of many construction projects, particularly those that involve large-scale developments or infrastructure. By overlaying geographic data such as topography, hydrology, and geology onto a digital map, project teams can better understand the context of their projects and make more informed decisions. The AEC Collection’s integration with GIS mapping tools allows architects, engineers, and construction professionals to access this data within their design software, creating a more seamless and connected workflow.

With the AEC Collection, design professionals can also collaborate with each other in real-time using tools such as Navisworks and Docs. Navisworks allows teams to integrate and coordinate models from multiple disciplines, while Docs enables document management and sharing across teams. By using these tools in conjunction with GIS mapping, project teams can ensure that all stakeholders have access to the most up-to-date information, reducing errors and improving overall project efficiency.

Enhancing Oil and Gas Plant Design with the AEC Collection and Plant 3D

The Architecture Engineering and Construction (AEC) Collection is a powerful suite of software programs designed to facilitate connected design for the architecture industry. One of the key software programs in this collection is Plant 3D, which is specifically designed for oil and gas plant design.

Plant 3D is a comprehensive software program that enables users to design, model, and analyze piping and instrumentation diagrams (P&ID) for oil and gas plants. With its intuitive interface and advanced tools, Plant 3D allows users to create accurate and detailed 3D models of plant layouts, equipment, and piping systems.

One of the key advantages of using the AEC Collection and Plant 3D for oil and gas plant design is the ability to collaborate with other disciplines in the industry, such as civil engineering and structural design. By working together in a connected design environment, designers and engineers can ensure that all aspects of the plant design are integrated seamlessly, from the initial concept through to construction and operation.

In addition, the AEC Collection and Plant 3D offer a range of powerful tools for data management and analysis, enabling users to track and monitor plant performance, optimize plant layouts, and identify potential safety hazards or operational issues.

Some of the key features of Plant 3D include:

Intelligent P&ID design and management tools
Comprehensive 3D modeling capabilities
Advanced piping and instrumentation analysis tools
Integration with other AEC Collection software programs, such as Navisworks and Docs

By leveraging these features, designers and engineers in the oil and gas industry can streamline their design processes, improve collaboration, and ensure that their plant designs are optimized for safety, efficiency, and performance.

Enhancing Visualisation with 3DS Max and InfraWorks

Visualisation is an essential part of any construction project. The Autodesk Architecture, Engineering and Construction Collection includes software programs that aid in the visualization process. 3DS Max is a software program that allows for rendering and animation of 3D models. 3DS Max helps in creating realistic visuals, which help in selling designs to clients. Autodesk InfraWorks is another software program that helps in creating visualizations of infrastructure projects. InfraWorks allows for collaboration between various stakeholders, and it helps in creating a more efficient design process.

Streamlining AEC Projects with Autodesk Docs

Autodesk Docs is a powerful document management tool that can help streamline AEC projects when used in conjunction with the Architecture Engineering and Construction Collection (AEC Collection) software. The AEC Collection includes several software programs that are essential for building design and construction, including Revit, Civil 3D, and Advance Steel.

By using Autodesk Docs to manage project documents, stakeholders can easily access and collaborate on project files from anywhere, at any time. This can improve project efficiency and communication, as all team members can stay up-to-date on project progress and changes.

Moreover, the AEC Collection software can be seamlessly integrated with Autodesk Docs, allowing users to store and manage their project files directly within Autodesk Docs. This integration makes it easier for teams to collaborate on project files and ensures that all project documentation is stored in one place, reducing the risk of lost or missing files.

For example, Revit models can be directly linked to Autodesk Docs, allowing team members to access and collaborate on the most up-to-date model at all times. Civil 3D designs can also be stored in Autodesk Docs, making it easy to share and collaborate on complex civil engineering projects.

Overall, by using Autodesk Docs in conjunction with the AEC Collection software, AEC professionals can streamline their project workflows, improve collaboration and communication, and ensure that project documentation is secure and easily accessible.

AEC Collection in Various Industries: Architecture, Engineering, Construction, Infrastructure, and Manufacturing

The Autodesk Architecture, Engineering and Construction Collection is beneficial to various industries. Here are a few examples:

Architecture: The Autodesk Architecture, Engineering and Construction Collection is used by architects to design and visualise buildings. The software programmes in the collection allow for efficient design, analysis, and visualisation.

Engineering: Engineers use the Autodesk Architecture, Engineering and Construction Collection to perform structural analysis and design. The software programmes in the collection help in identifying structural deficiencies, optimising designs, and creating efficient designs.

Construction: The Autodesk Architecture, Engineering and Construction Collection is used in the construction industry to coordinate and simulate construction projects. The software programmes in the collection help in identifying clashes, reducing errors and rework, and creating more efficient designs.

Infrastructure: The Autodesk Architecture, Engineering and Construction Collection is used in the infrastructure industry to design and visualise infrastructure projects. The software programmes in the collection, such as InfraWorks, help in creating visualisations of infrastructure projects. InfraWorks allows for collaboration between various stakeholders, including engineers, designers, and contractors. By using the Autodesk Architecture, Engineering and Construction Collection, infrastructure projects can be completed more efficiently and cost-effectively.

Manufacturing: The Autodesk Architecture, Engineering and Construction Collection is also used in the manufacturing industry. The collection includes software programmes that aid in the design of manufacturing equipment and machinery. Autodesk Inventor, for example, is used to design and test products before they are manufactured, reducing errors and costs.

Architecture Engineering and Construction Collection Connected Design Matrix

Software	Description	File Type	Command	Import/Export	Link
AutoCAD	2D and 3D computer-aided design software used for creating blueprints, schematics, and models	DWG, DXF, DWF	DRAWING, MODEL, VIEW, PLOT	Import: DWG, DXF, DWF, PDF, STEP, SAT, IGES, STL	Export: DWG, DXF, DWF, PDF, STL, OBJ, FBX
Revit	Building information modeling (BIM) software used for creating detailed 3D models of buildings and structures	RVT, RFA, RTE	OPEN, VIEW, EXPORT, PRINT	Import: DWG, DXF, IFC, SAT, SKP, 3DM, STL, OBJ, FBX	Export: DWG, DXF, DWF, PDF, IFC, SAT, SKP, 3DM, STL, OBJ, FBX
Civil 3D	Civil engineering design and documentation software used for designing, analyzing, and documenting civil engineering projects	DWG	CIVIL3D, C3D	Import: DWG, LandXML, Revit	Export: DWG, LandXML, Revit
InfraWorks	Infrastructure design and engineering software used for creating 3D models of infrastructure projects	IAM	OPEN, MODEL, VIEW, EXPORT, PUBLISH	Import: DWG, DGN, GIS, SHP, KML, FBX	Export: DWG, DGN, FBX, COLLADA, OBJ, IFC, KMZ
3ds Max	3D modeling, animation, and rendering software used for creating visualizations of buildings and environments	MAX	OPEN, MODEL, RENDER	Import: DWG, FBX, DAE, OBJ, 3DS, STL	Export: DWG, FBX, DAE, OBJ, 3DS, STL
Navisworks	Project review software used for 3D coordination, model analysis, and clash detection	NWD, NWF	OPEN, APPEND, EXPORT, PUBLISH	Import: DWG, DWF, DGN, IFC, SKP, FBX, 3DS, OBJ	Export: DWF, DWFx, NWC, NWF, FBX, 3DS, OBJ
Advance Steel	Steel detailing software used for creating structural steel models and fabrication drawings	DWG, DSTV	OPEN, MODEL, EXPORT	Import: DWG, CIS/2, SDNF, IFC, STEP, SAT, SKP	Export: DWG, DSTV, CIS/2, SDNF, IFC, STEP, SAT, SKP
Robot Structural Analysis Professional	Structural analysis software used for simulating and analyzing building structures	RST, RSA

AEC Collection: A Valuable Tool for Cost-Effective Design Processes.

In conclusion, the Autodesk Architecture, Engineering and Construction Collection is a comprehensive suite of software programs that facilitates a connected design workflow. The software programs in the collection work together seamlessly, allowing for efficient design, analysis, and visualization. By using the Autodesk Architecture, Engineering and Construction Collection, various industries can benefit from a more efficient and cost-effective design process. The collection is beneficial to architects, engineers, construction professionals, infrastructure designers, and manufacturers. The collection is continuously evolving to meet the needs of these industries, and it remains a valuable tool in the construction industry.

Ready to get your Design Connected?

Discover how Autodesk Architecture Engineering and Construction Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Architecture Engineering and Construction Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Autodesk Acquires Unifi: Enhancing the BIM Content Management Experience

March 22, 2023

| No Comments

| AutoCAD, AutoCAD, Autodesk Collections, Autodesk Inventor, Autodesk News, Autodesk Products, Building Design Suite, Plant Design Suite, Product Design & Manufacturing Collection, Product Design Suite, Revit, Revit, Uncategorized

Autodesk, a global leader in 3D design, engineering, and construction software, has recently announced its acquisition of Unifi, a cloud-based platform for Building Information Modeling (BIM) content management. With this acquisition, Autodesk aims to enhance the BIM content management experience for its customers and provide a more streamlined workflow.

What is Unifi and What Does it Offer?

Unifi is a cloud-based platform that provides a centralized location for BIM content management. It allows users to store, organize, and share BIM content such as 3D models, materials, and specifications. Unifi also offers advanced search and filtering capabilities, making it easier for users to find the content they need.

How Will Unifi Benefit Autodesk Customers?

By acquiring Unifi, Autodesk aims to enhance its BIM content management capabilities and provide a more seamless workflow for its customers. With Unifi’s advanced content management features, Autodesk customers can more easily manage their BIM content and collaborate with other stakeholders on projects. This will help to improve productivity and reduce errors in the design and construction process.

In addition, Unifi’s cloud-based platform provides greater flexibility and scalability for users, allowing them to access their BIM content from anywhere and on any device. This will enable more efficient collaboration between teams, whether they are working in the office or remotely.

What Does This Acquisition Mean for the Future of BIM?

The acquisition of Unifi by Autodesk is a significant development in the BIM industry, as it highlights the importance of effective content management in the design and construction process. By providing a more streamlined and efficient workflow for BIM content management, Autodesk is helping to drive innovation and improve collaboration in the industry.

Overall, the acquisition of Unifi by Autodesk is a positive development for BIM users, as it will enhance the content management experience and provide greater efficiency and flexibility for design and construction teams. With this acquisition, Autodesk is demonstrating its commitment to providing innovative solutions to its customers and driving the industry forward.

In conclusion, the acquisition of Unifi by Autodesk is a major step forward in BIM content management, and it is set to bring numerous benefits to Autodesk customers. With this move, Autodesk is well positioned to continue providing innovative solutions that enhance the BIM workflow and drive industry progress.

Learn more about Autodesk and Unifi:

Autodesk Newsroom: https://adsknews.autodesk.com/en/news/connecting-aec-customer-data/
Unifi’s website: https://unifilabs.com/
Autodesk AEC Industry Solutions: https://www.autodesk.com/solutions/architecture-engineering-construction
Autodesk BIM 360: https://www.autodesk.com/products/bim-360/overview
Autodesk Revit: https://www.autodesk.com/products/revit/overview

Are you an Autodesk customer and want to get Unified?

If you an Autodesk customer interested in leveraging the benefits of Unifi’s cloud-based data platform for your AEC projects, and want be the first to know when Autodesk is ready to start supplying Unifi, contact us now to stay in the loop and take your AEC projects to the next level.

Connected Visual Design with Autodesk Product Design & Manufacturing Collection

March 22, 2023

| No Comments

| 3ds Max, Autodesk Inventor, Fusion 360, Inventor, Inventor Professional, Navisworks, Product Design & Manufacturing Collection, Visualisation, Visualisation

Connected Visual Design With Autodesk Product Design & Manufacturing Collection

Introduction to Visualisation With Autodesk Product Design & Manufacturing Collection

Autodesk Product Design & Manufacturing Collection is a comprehensive suite of software tools designed for manufacturers, product designers, and engineers. The collection includes a range of software applications, including Autodesk Inventor, Fusion 360, Nastran, 3ds Max, Navisworks, and Recap. These tools are designed to work together seamlessly, enabling users to create and visualise designs with ease.

One of the key benefits of the Autodesk Product Design & Manufacturing Collection is its ability to facilitate connected visual design. This means that the software tools in the collection work together to provide users with a holistic view of their designs, from initial concept to final product.

In this blog, we will explore some of the key features of the Autodesk Product Design & Manufacturing Collection that enable connected visual design, including photo rendering, shared views, simulation, project management collaboration, and 3D laser scan visualisation.

Photo Rendering in Autodesk Inventor

Photo rendering is an important aspect of visual design, as it enables designers to create realistic and detailed images of their designs. Autodesk Inventor, one of the software tools included in the Autodesk Product Design & Manufacturing Collection, includes powerful photo rendering capabilities.

Autodesk Inventor’s photo rendering tools enable users to create high-quality, photorealistic images of their designs. The software includes a range of lighting and material options, enabling users to customise the look and feel of their designs.

In addition, Autodesk Inventor’s photo rendering tools are integrated with its modelling tools, enabling users to create and edit their designs in real-time as they render them. This enables designers to quickly make changes to their designs and see how they will look in real-time.

Shared Views and Presentation Environment in Autodesk Inventor

In addition to its photo rendering capabilities, Autodesk Inventor also includes features that enable users to share their designs with others. The software’s Shared Views feature enables users to share their designs with others, regardless of whether they have Autodesk Inventor installed on their computer.

Using Shared Views, users can share their designs with others via a web link. This enables designers to collaborate with others and receive feedback on their designs from a wider range of stakeholders.

In addition, Autodesk Inventor includes a Presentation Environment feature, which enables users to create interactive presentations of their designs. This feature enables designers to showcase their designs in a more engaging and interactive way, helping to communicate the value of their designs to others.

Photo Rendering in Fusion 360

Fusion 360 is another software tool included in the Autodesk Product Design & Manufacturing Collection that includes powerful photo rendering capabilities. The software includes a range of lighting and material options, enabling users to create realistic and detailed images of their designs.

In addition, Fusion 360 includes a cloud rendering feature, which enables users to render their designs in the cloud.

This means that users can send their rendering jobs to the cloud, where they will be processed using powerful cloud-based hardware. This enables users to quickly and easily create high-quality, photorealistic images of their designs without having to invest in expensive hardware.

Photo Rendering in Navisworks

Navisworks is a project management software tool included in the Autodesk Product Design & Manufacturing Collection. The software is designed to facilitate collaboration and project management across the entire product design process.

In addition to its project management capabilities, Navisworks also includes powerful photo rendering tools. This enables users to create high-quality, photorealistic images of their designs, helping to communicate the value of their designs to stakeholders.

Simulation in Autodesk Inventor and Fusion 360

Simulation is an important aspect of the product design process, as it enables designers to test and validate their designs before they are manufactured. The Autodesk Product Design & Manufacturing Collection includes a range of simulation tools, including simulation capabilities in both Autodesk Inventor and Fusion 360.

Autodesk Inventor’s simulation tools enable users to simulate a range of scenarios, including stress analysis, deformation analysis, and motion analysis. This enables users to identify potential design flaws and make improvements before the product is manufactured.

Similarly, Fusion 360’s simulation tools enable users to simulate a range of scenarios, including structural, thermal, and fluid simulations. This enables users to gain a deeper understanding of how their designs will perform in the real world, helping to identify potential issues and make improvements.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

Visualising Simulation Studies with Nastran and 3ds Max

In addition to simulation capabilities, the Autodesk Product Design & Manufacturing Collection includes tools that enable users to visualise and communicate their simulation studies. Nastran, a finite element analysis software tool, is included in the collection and enables users to perform advanced simulations.

Using Nastran, users can simulate a range of scenarios, including linear and nonlinear stress analysis, dynamic analysis, and heat transfer analysis. Once a simulation study is complete, users can use 3ds Max, a cinematic photo rendering and animation software tool included in the collection, to visualise the results.

This means that users can create high-quality, photorealistic animations of their simulation studies, helping to communicate their findings to others. This is particularly useful for designers who need to communicate their findings to non-technical stakeholders, such as executives or investors.

Simulation with 3ds Max

While 3ds Max is primarily known for its capabilities in creating 3D models and animations, it also includes powerful simulation tools that can be used to test and validate designs. These tools can be particularly useful for designers who are creating complex assemblies, such as mechanical or architectural systems.

One of the key simulation tools included in 3ds Max is the MassFX physics engine. This engine enables users to simulate realistic physical interactions between objects, such as collisions, gravity, and friction. Users can create simulations of objects falling, bouncing, and rolling across surfaces, and adjust the properties of the objects and the environment to create realistic effects.

Another simulation tool included in 3ds Max is the Particle Flow system. This system enables users to simulate the behavior of particles, such as dust, smoke, or debris. Users can create complex simulations of particle systems, adjusting the speed, direction, and density of the particles to create realistic effects.

In addition to these tools, 3ds Max also includes a range of plugins and add-ons that can be used to enhance its simulation capabilities. For example, the ThinkingParticles plugin enables users to create complex particle simulations, while the FumeFX plugin can be used to simulate smoke and fire.

Overall, the simulation tools included in 3ds Max can be a valuable resource for designers who need to test and validate their designs before they are manufactured. By creating simulations of complex systems, designers can identify potential problems and make adjustments before the design is finalized, helping to ensure that the final product meets the needs of its users.

It is important to note that while 3ds Max includes powerful simulation tools, it is not a dedicated simulation software like Nastran or Inventor. Therefore, it may not be suitable for all types of simulations and may require additional plugins or tools to create more complex simulations.

Cinematic Photo Rendering and Animations in 3ds Max

3ds Max is a cinematic photo rendering and animation software tool included in the Autodesk Product Design & Manufacturing Collection. The software includes powerful rendering capabilities, enabling users to create high-quality, photorealistic images of their designs.

In addition, 3ds Max includes a range of animation tools, enabling users to create complex animations of their designs. This is particularly useful for designers who need to create animations of their designs for marketing or instructional purposes.

Visualising 3D Laser Scans with Recap

Recap is a 3D scanning software tool that is included in the Autodesk Product Design & Manufacturing Collection. It enables users to create detailed 3D scans of physical objects, which can then be imported into other software tools for further processing.

One of the primary ways that Recap is used in the collection is to import 3D scans into other design software tools, such as Autodesk Inventor or Fusion 360. Once the scan data has been imported into these tools, designers can use it to create precise 3D models of the scanned objects.

For example, a designer might use Recap to create a 3D scan of an existing object, such as a machine part. The scan data can then be imported into Inventor, where the designer can create a 3D model of the part. This can be useful for designers who need to create replacement parts or make modifications to existing designs.

In addition to Inventor and Fusion 360, Recap data can also be imported into other software tools included in the Product Design & Manufacturing Collection. For example, the scan data can be imported into 3ds Max, where it can be used to create detailed visualisations and animations of the scanned objects.

Recap data can also be imported into Navisworks, which is a powerful project management and collaboration tool. By importing scan data into Navisworks, designers can create detailed 3D models of existing structures or environments, which can be used to plan construction projects or renovations.

Overall, Recap is a powerful tool that can be used to create detailed 3D scans of physical objects, which can then be imported into other software tools in the Product Design & Manufacturing Collection. This can be useful for designers who need to create precise 3D models of existing objects, or for those who need to plan construction projects or renovations using detailed 3D models of existing structures or environments.

Recap scans can be imported into several other software tools included in the Autodesk Product Design & Manufacturing Collection, including AutoCAD with specialized toolsets.

AutoCAD with specialized toolsets is a version of AutoCAD that includes additional features and tools designed for specific industries, such as architecture, engineering, and construction. It includes toolsets such as Architecture, Electrical, Mechanical, and MEP, among others.

By importing Recap scans into AutoCAD with specialized toolsets, designers can use the scan data to create precise 2D and 3D models of existing structures or environments. For example, the Architecture toolset includes features such as walls, doors, windows, and stairs, which can be used to create detailed architectural plans based on the scan data. Similarly, the Mechanical toolset includes tools for creating 3D models of mechanical components based on the scan data.

In addition to AutoCAD with specialized toolsets, Recap scans can also be imported into other software tools included in the Product Design & Manufacturing Collection, such as Nastran and Simulation Mechanical. These tools are used for advanced simulation and analysis of complex mechanical systems, and by importing scan data into these tools, designers can create precise 3D models of existing systems and components.

Recap scans can also be imported into Navisworks, which is a powerful project management and collaboration tool. By importing scan data into Navisworks, designers can create detailed 3D models of existing structures or environments, which can be used to plan construction projects or renovations.

Overall, Recap scans can be imported into a variety of software tools included in the Autodesk Product Design & Manufacturing Collection, including AutoCAD with specialized toolsets, Nastran, Simulation Mechanical, and Navisworks. This enables designers to create precise 2D and 3D models based on scan data, as well as perform advanced simulation and analysis of complex systems and components.

Bringing in 3D Models into 3ds Max and Navisworks

Connected visual design refers to the process of using various software tools to create and visualise 3D models of products or structures in a connected, integrated way. The Autodesk Product Design & Manufacturing Collection includes several software tools that can be used for connected visual design, including 3ds Max and Navisworks.

3ds Max is a powerful tool for creating highly detailed 3D models, as well as visualisations and animations of those models. By importing designs from other software tools, such as Inventor or Fusion 360, into 3ds Max, designers can create highly detailed visualisations of their products or structures. This can be useful for creating marketing materials or for visualising how products will look in real-world environments.

One of the key benefits of using 3ds Max for connected visual design is its ability to create highly realistic photo-renderings and animations. The software includes a range of tools and features for creating realistic lighting, textures, and materials, which can help designers create highly realistic visualisations of their designs. This can be particularly useful for designers who need to create realistic images or animations for marketing materials or presentations.

Navisworks, on the other hand, is a powerful project management and collaboration tool that is designed for use in the construction industry. It allows designers and project managers to create detailed 3D models of buildings or other structures, which can be used to plan and manage construction projects.

By importing 3D designs from other software tools, such as Inventor or Fusion 360, into Navisworks, designers can create highly detailed 3D models of their structures or environments. These models can then be used to plan construction projects or to identify potential issues or clashes in the design.

In addition to its project management and collaboration features, Navisworks also includes tools for creating realistic visualisations of designs. The software includes a range of photo-rendering and animation tools, which can be used to create highly realistic visualisations of buildings or other structures. This can be useful for creating marketing materials or for visualising how buildings or structures will look in real-world environments.

Overall, the Autodesk Product Design & Manufacturing Collection includes several software tools that can be used for connected visual design, including 3ds Max and Navisworks. By importing designs from other software tools into these applications, designers can create highly detailed and realistic visualisations of their products or structures, as well as manage construction projects and collaborate with other team members.

Exporting Navisworks to 3ds Max

To export Navisworks models to 3ds Max for further visualization such as photo rendering and animation, you can use the FBX file format. First, open your Navisworks model and select the objects you wish to export. Then, go to the “Add-Ins” tab and click on “Export FBX”. In the Export FBX dialog box, select the appropriate options such as the file location and units, and click “Export”. Once exported, open 3ds Max and import the FBX file. You can then apply textures, materials, and lighting to the model and use the software’s rendering and animation tools to create high-quality visuals and animations.

Compare Visualisation in Product Design & Manufacturing Collection

Software Title	Visualisation Tool	Key Features
Autodesk Inventor	Photo Rendering	• Realistic rendering of 3D designs • Supports a variety of materials, textures, and lighting options • Ability to create exploded views and animation
Autodesk Inventor	Shared Views and Presentation Environment	• Share designs with others and receive feedback • Collaboration and commenting tools • Ability to create presentations with interactive features
Autodesk Fusion 360	Photo Rendering	• Cloud rendering for faster rendering times • Realistic rendering of 3D designs • Supports a variety of materials, textures, and lighting options
Autodesk Simulation	Inventor	• Ability to simulate mechanical, thermal, and fluid flow properties • In-product simulation analysis • Interactive result visualisation
Autodesk Simulation	Fusion 360	• Cloud-based simulation analysis • Ability to simulate mechanical, thermal, and fluid flow properties • Interactive result visualisation
Autodesk Nastran	Visualise Simulation Studies	• Advanced simulation analysis capabilities • Ability to simulate a wide range of materials and physical properties • Interactive result visualisation
Autodesk Navisworks	Photo Rendering	• Realistic rendering of 3D models • Ability to create animations and walkthroughs • Collaboration and commenting tools
Autodesk Navisworks	Project Management and Collaboration	• Ability to create highly detailed 3D models of buildings or structures • Identify potential issues or clashes in the design • Collaboration and commenting tools
Autodesk Navisworks	5D Scheduling	• Create and manage construction schedules • Ability to simulate construction sequences and identify potential issues • Collaboration and commenting tools
Autodesk 3ds Max	Cinematic Photo Rendering and Animations	• Highly realistic photo-rendering and animation capabilities • Supports a variety of materials, textures, and lighting options • Advanced animation capabilities
Autodesk Recap	Visualise 3D Laser Scans with 3D Models	• Ability to create detailed 3D scans of physical objects • Import scans into other software tools for further processing • Integration with AutoCAD with specialised toolsets for modelling and visualisation

Ready to get your Visualisations Connected?

Discover how Autodesk Product Design & Manufacturing Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Product Design & Manufacturing Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Connected Factory Design with Autodesk Product Design & Manufacturing Collection

March 21, 2023

| No Comments

| AutoCAD, AutoCAD, AutoCAD Electrical, AutoCAD Mechanical, AutoCAD MEP, Autodesk Inventor, Factory Design Suite, Fusion 360, Inventor, Inventor Professional, Navisworks, Product Design & Manufacturing Collection

Connected Factory Design with Autodesk Product Design & Manufacturing Collection

The Benefits of Connected Factory Design with Autodesk Product Design & Manufacturing Collection

In today’s competitive manufacturing landscape, it’s crucial for companies to design and build factories that are efficient, cost-effective, and adaptable to changing market demands. With the help of advanced technology, such as Autodesk’s Product Design & Manufacturing Collection, Autodesk Inventor, AutoCAD Architecture, and Navisworks, manufacturers can streamline their factory design process, reduce errors, and improve productivity.

In this blog post, we’ll explore the benefits of using Autodesk’s Product Design & Manufacturing Collection, Inventor, AutoCAD Architecture, and Navisworks using the Factory Design Utilities and how these tools are connected. We’ll also discuss real-world applications of connected factory design and how it can empower manufacturers to stay ahead of the competition.

Introduction to Connected Factory Design with Autodesk

Connected factory design refers to the use of advanced software tools to create a cohesive, streamlined design process for factories. This approach involves integrating various design and simulation tools to create a single, unified workflow. Autodesk’s Product Design & Manufacturing Collection is a powerful suite of software tools that allows manufacturers to create a connected factory design process.

Benefits of Using Product Design & Manufacturing Collection for Factory Design

The Product Design & Manufacturing Collection includes several powerful tools that can help manufacturers design and simulate their factories with greater efficiency and accuracy. Here are some of the key benefits of using these tools for factory design:

Streamlined Design Process: Autodesk’s tools allow manufacturers to create a connected factory design process that integrates various design and simulation tools. This approach can help reduce errors and streamline the design process, resulting in faster time-to-market.
3D Modeling: With Autodesk Inventor, manufacturers can create 3D models of their factories, allowing them to visualize and optimize their designs before construction begins. This can help reduce costs and ensure that the factory meets all functional requirements.
Building Design Optimization: AutoCAD Architecture provides a suite of powerful tools for building design optimization. This includes features such as automated documentation, advanced rendering, and collaboration tools, which can help manufacturers create optimized building designs.
Factory Design and Simulation: Navisworks allows manufacturers to create detailed simulations of their factories, including machinery, equipment, and workflows. This can help identify potential issues before construction begins and ensure that the factory operates efficiently once it’s up and running.

Enhancing Factory Design with Navisworks and Factory Design Utilities

Navisworks and Factory Design Utilities are two key tools within the Product Design & Manufacturing Collection that can help manufacturers enhance their factory design process. Navisworks allows for detailed factory simulation, while Factory Design Utilities provides a suite of tools specifically designed for factory design.

Some of the key features of these tools include:

Factory Design Utilities: This tool provides a suite of powerful tools specifically designed for factory design, including conveyor design, layout optimization, and factory equipment libraries.
Navisworks: Navisworks allows manufacturers to create detailed simulations of their factories, including machinery, equipment, and workflows. This can help identify potential issues before construction begins and ensure that the factory operates efficiently once it’s up and running.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

Connecting the Tools for Seamless Factory Design

One of the key advantages of Autodesk’s Product Design & Manufacturing Collection is that it allows manufacturers to connect various tools within the suite to create a seamless factory design process. For example, manufacturers can use Navisworks to simulate their factory design, then use Factory Design Utilities to optimize the layout and equipment design, before using Inventor to create detailed 3D models of the factory.

Real-world Applications of Connected Factory Design

Connected factory design has numerous real-world applications across a wide range of industries. For example, automotive manufacturers can use these tools to design and build factories that are optimized for the production of electric vehicles. Pharmaceutical companies can use these

Top 5 Reasons to use Connected Factory Design with Product Design & Manufacturing Collection instead of only AutoCAD or Inventor

Layout Optimization: One of the biggest advantages of using Factory Design Utilities is its ability to optimize the layout of a factory. This software enables users to create 3D factory models and simulate their operations, allowing them to test different layout configurations and optimize them for better productivity and efficiency.
Equipment Design: Factory Design Utilities provides specialized tools for designing and placing factory equipment, including conveyors, robots, and other machinery. This software enables users to create accurate 3D models of equipment, test its functionality, and optimize its placement for maximum efficiency.
Collaboration Tools: Factory Design Utilities also provides collaboration tools that allow multiple stakeholders to work on the same project simultaneously. This feature enables designers, engineers, and other team members to collaborate on designs, exchange feedback, and make changes in real-time, improving the overall quality of the design.
Real-world Applications: Factory Design Utilities has been specifically designed for factory design and is widely used in real-world applications. This software has been used by manufacturers in various industries, including automotive, pharmaceutical, and consumer goods, to create efficient and effective factory designs.
Time-to-Market: The use of Factory Design Utilities can help reduce the time-to-market of a product by enabling manufacturers to design and optimize their factories quickly and efficiently. This software allows manufacturers to test and optimize their designs before they are built, reducing the need for costly and time-consuming modifications during the construction phase.

Factory Design Utilities Commands

Command/Tool	Factory Design Utilities	AutoCAD	Inventor	Navisworks
Layout	Factory tab > Create Layout	–	–	–
Edit Layout	Factory tab > Edit Layout	–	–	–
Auto-Route	Factory tab > Auto-Route	–	–	–
Auto-Place	Factory tab > Auto-Place	–	–	–
Factory Components	Factory tab > Factory Components	–	–	–
Insert DWG/DXF	Factory tab > Insert DWG/DXF	–	–	–
Align and Distribute	Factory tab > Align and Distribute	Modify tab > Align	Assemble tab > Align	Modify tab > Align
Grounding and Surface	Factory tab > Grounding and Surface	–	–	–
Place Equipment	Factory tab > Place Equipment	–	–	–
Factory Assets	Factory tab > Factory Assets	–	–	Navisworks Manage tab > Manage Assets
Assets from Inventor	Factory tab > Assets from Inventor	–	–	Navisworks Manage tab > Import Inventor
Asset Properties	Factory tab > Asset Properties	–	–	Navisworks Manage tab > Asset Properties
Visualize	Factory tab > Visualize	Visualize tab > Render	Studio tab > Create Studio Render	Navisworks Manage tab > Visualize
Analyze	Factory tab > Analyze	–	–	Navisworks Manage tab > Analyze
Optimize	Factory tab > Optimize	–	–	Navisworks Manage tab > Optimize
Sync to Factory	Factory tab > Sync to Factory	–	–	Navisworks Manage tab > Synchronize
Add to Factory Assets	Factory tab > Add to Factory Assets	–	–	Navisworks Manage tab > Add to Assets
Update from Factory Assets	Factory tab > Update from Factory Assets	–	–	Navisworks Manage tab > Update from Assets
Factory Reports	Factory tab > Factory Reports	–	–	Navisworks Manage tab > Report

Case Studies

Here are some case studies for Autodesk Factory Design Utilities and Factory Design Suite:

FLSmidth: FLSmidth, a global supplier of cement and minerals processing equipment, used Autodesk Factory Design Suite to design and optimize a new manufacturing facility in China. The software allowed them to create a 3D model of the plant layout and simulate different scenarios to identify the most efficient design.
Pratt & Whitney: Pratt & Whitney, a manufacturer of aircraft engines, used Autodesk Factory Design Suite to design a new production facility in Singapore. The software allowed them to visualize the facility in 3D and optimize the layout to reduce material handling and increase efficiency.
Hekuma: Hekuma, a manufacturer of injection molding systems, used Autodesk Factory Design Suite to design a new factory in Germany. The software allowed them to create a 3D model of the facility and simulate different scenarios to optimize the layout for efficiency and safety.
Sandvik Mining: Sandvik Mining, a global supplier of mining equipment and services, used Autodesk Factory Design Suite to design a new manufacturing facility in South Africa. The software allowed them to visualize the layout in 3D and optimize the design to reduce material handling and increase productivity.
The Heinz Endowments: The Heinz Endowments, a nonprofit organization focused on environmental sustainability, used Autodesk Factory Design Utilities to design a new sustainable manufacturing facility in Pittsburgh. The software allowed them to create a 3D model of the facility and simulate different scenarios to optimize the design for energy efficiency and sustainability.

These case studies demonstrate the diverse range of industries and applications for Autodesk Factory Design Utilities and Factory Design Suite, and the software’s ability to improve efficiency, productivity, and sustainability in manufacturing and production facilities.

Ready to get your Factory Design Connected?

Discover how Autodesk Product Design & Manufacturing Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Product Design & Manufacturing Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Connected PCB Design with Autodesk Product Design & Manufacturing Collection

March 20, 2023

| No Comments

| AutoCAD, AutoCAD Electrical, Autodesk Inventor, Fusion 360, Inventor, Inventor Professional, Product Design & Manufacturing Collection

Connected PCB Design with Autodesk Product Design & Manufacturing Collection

Revolutionising Electronics Design: How Autodesk Inventor's PCB Interoperability Tools are Changing the Game

Autodesk Inventor is a powerful CAD software that offers a range of advanced features for mechanical and electrical design. One of the most valuable features for electronic designers is the ability to work with printed circuit boards (PCBs) directly in the software. With Autodesk Inventor’s PCB interoperability tools, users can streamline their design process and create more accurate designs

How to Achieve Connected Design with Autodesk Inventor and Eagle (Fusion 360)

Are you looking to streamline your printed circuit board (PCB) design workflow? Look no further than Autodesk’s connected design solution between Inventor and Eagle. This powerful combination allows for seamless collaboration between mechanical and electrical design teams. Autodesk Eagle, now a part of Fusion 360, is a popular PCB design tool that offers a range of powerful features to create schematics, layout designs, and manufacturing outputs. By integrating Eagle with Inventor, designers can easily incorporate PCBs into their mechanical assemblies and optimize the fit and function of their designs.

Another benefit of this connected design approach is the ability to visualize the PCB and its components in a 3D mechanical assembly context. This allows designers to check for potential interferences, optimize the placement of the PCB and its components, and ultimately achieve a more efficient and cost-effective design.

To get started with connected design between Inventor and Eagle, simply import your Eagle board file into Inventor. From there, you can place the PCB into your assembly and start working on the integration with your mechanical components. Changes made to the PCB in Eagle will be reflected in Inventor, and vice versa.

Inventor's PCB Interoperability Tools

Inventor offers a suite of tools for working with PCBs, including:

ECAD-MCAD Collaboration

This tool allows electrical and mechanical designers to work together seamlessly by importing 3D models of the PCB into Inventor. This tool eliminates the need for physical prototypes and enables designers to test the fit of the PCB in the mechanical assembly.

PCB layout import

Inventor can import and view PCB layouts from other software tools such as Eagle, Altium, and OrCAD. This feature allows designers to view their designs in a 3D environment and make any necessary changes before finalizing the design.

Design rule checking

Inventor offers a comprehensive design rule checking tool that allows designers to check their PCB designs against a set of predefined rules. This feature ensures that the design meets industry standards and helps identify any potential errors before the manufacturing process.

Export to Manufacturing

Once the design is complete, Inventor can export the PCB design to the manufacturing process. This feature ensures that the design is accurate and ready for production.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

Streamlining Design Workflows: Importing and Exporting Data Between Autodesk Inventor and Eagle (Fusion 360)

Importing and exporting data between Autodesk Inventor and Eagle is a critical function for any engineer working on a connected design project. Fortunately, the process is straightforward, thanks to the seamless integration between the two applications.

To import an Eagle board into Inventor, the first step is to create a new board assembly in Inventor. Next, click on the Eagle PCB Import command and select the .brd file. Inventor will then import all the PCB data, including the component placement and board outline.

Exporting data from Inventor to Eagle is equally easy. Simply open the board assembly in Inventor and select the Eagle PCB Export command. This will generate a .brd file that can be imported into Eagle, complete with all the board data and component placement.

One critical aspect of importing and exporting data between these two applications is ensuring that the design rules and constraints are consistent. Any discrepancies in the design rules can cause significant issues, including board failures or electrical shorts.

Fortunately, Autodesk has developed a comprehensive set of tools to ensure that data is accurately exchanged between Inventor and Eagle. For example, the Eagle board data is automatically translated into the Inventor format, ensuring that all dimensions and placement data are consistent.

Seamless Integration: How Autodesk Inventor and Fusion 360 Work Together for Streamlined PCB Design

Autodesk Inventor and Fusion 360 are both powerful design tools that can be used for a wide range of applications. While Inventor is known for its advanced 3D design capabilities, Fusion 360 is a comprehensive product development platform that allows designers and engineers to work together in a collaborative environment.

One of the ways that Inventor and Fusion 360 work together is through their interoperability with PCB design software. In particular, Fusion 360 includes an integrated PCB design tool called Eagle that can be used to create schematics and layouts for printed circuit boards. By leveraging the power of Eagle and the design capabilities of Inventor and Fusion 360, designers can create complex PCB designs with ease.

One of the key benefits of using Inventor and Fusion 360 for PCB design is the ability to work in a connected design environment. This means that designers can collaborate in real-time with other members of their team, including electrical engineers, mechanical engineers, and other stakeholders. This collaborative approach can help to streamline the design process and reduce errors, ensuring that the final product is of the highest quality.

Another advantage of using Inventor and Fusion 360 for PCB design is the ability to import and export data between the two platforms. This means that designers can easily move between the two tools, leveraging the strengths of each platform as needed. For example, designers can create a 3D model of a PCB in Inventor, then import the data into Fusion 360 to add electrical components and wiring.

To get started with using Inventor and Fusion 360 for PCB design, users should first become familiar with the basic workflows and tools of each platform. They should also explore the various integration points between the two tools, including the ability to import and export data, collaborate in a connected design environment, and use the integrated Eagle PCB design tool within Fusion 360.

Why Use Autodesk Inventor for PCB Design?

Autodesk Inventor’s PCB interoperability tools make it an ideal choice for electronic designers. The ability to work with both mechanical and electrical designs in the same software environment streamlines the design process and eliminates the need for multiple software tools. This feature also enables designers to test the fit of the PCB in the mechanical assembly, reducing the risk of errors and rework.

Additionally, Inventor’s ability to import and view PCB layouts from other software tools enables designers to work with existing designs and make any necessary changes in a 3D environment. This feature saves time and improves accuracy.

Finally, Inventor’s comprehensive design rule checking tool ensures that the design meets industry standards and identifies any potential errors before the manufacturing process. This feature reduces the risk of costly errors and ensures that the design is accurate and ready for production.

Conclusion

In conclusion, the interoperability between Autodesk Inventor and Fusion 360, along with the integrated Eagle PCB design tool, makes these tools an excellent choice for designers and engineers looking to create complex PCB designs. By working together in a connected design environment and leveraging the strengths of each platform, designers can create high-quality PCB designs in a fraction of the time it would take with other tools.

Ready to get your PCB Design Connected?

Discover how Autodesk Product Design & Manufacturing Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Product Design & Manufacturing Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Connected MEP Design with Autodesk Product Design & Manufacturing Collection

March 20, 2023

| No Comments

| AutoCAD, AutoCAD MEP, Autodesk Inventor, Inventor, Inventor Professional, Product Design & Manufacturing Collection

Connected MEP Design with Autodesk Product Design & Manufacturing Collection

Streamlining MEP Design with Autodesk: An In-Depth Look at AutoCAD MEP and Inventor's Tools and Benefits

MEP (mechanical, electrical, and piping) design is an essential part of building construction, and Autodesk’s Product Design and Manufacturing Industry Collection provides software tools to simplify and streamline the MEP design process. In this blog post, we’ll explore how Autodesk’s AutoCAD MEP and Inventor can be used for efficient and accurate MEP design

Using AutoCAD MEP for MEP Design

AutoCAD MEP is a powerful software tool specifically designed for MEP industry professionals. It comes equipped with a range of tools that make MEP design more efficient, including mechanical, electrical, and plumbing content, tool palettes, space coordination, electrical circuiting, and data extraction. These tools make it easy to create, edit, and share MEP designs with precision and accuracy

Using Autodesk Inventor for MEP Design

Autodesk Inventor is a 3D mechanical design software tool that can be used for MEP design. Its tube and pipe routing features, assembly environment, XREF, and AnyCAD features make it ideal for designing and analysing piping systems. The software allows for the creation of intelligent 3D models that can be used for interference checking, stress analysis, and simulation, providing MEP professionals with the necessary tools to streamline their design process.

Benefits of Using Autodesk's Product Design and Manufacturing Industry Collection

Using Autodesk’s Product Design and Manufacturing Industry Collection provides many benefits for MEP design. It saves time, improves accuracy, and ensures compliance with industry standards. With this software collection, MEP professionals have access to a suite of tools that can be used for 2D and 3D design, simulation, and analysis. Additionally, the software integrates with other Autodesk products, allowing for seamless collaboration between teams.

Importing DWG Files into AutoCAD MEP and Inventor

Both AutoCAD MEP and Inventor allow for the import of 2D and 3D DWG files. In AutoCAD MEP, you can import 2D DWG files using the “Insert” command. You can also import 3D DWG files and use them as a reference to create a new MEP model. In Inventor, you can import 2D DWG files using the AnyCAD feature. This feature allows you to link the 2D DWG file to your Inventor model, allowing you to update your design in real-time.

XREFing an Inventor Model into AutoCAD MEP

In addition to importing DWG files, you can also XREF an Inventor model into AutoCAD MEP. This feature allows you to bring in a 3D model created in Inventor and use it as a reference for your AutoCAD MEP model. By doing so, you can ensure that your MEP design is accurate and coordinated with other building systems.

Conclusion

In conclusion, Autodesk’s Product Design and Manufacturing Industry Collection provides MEP professionals with a suite of tools that can be used to streamline their design process. AutoCAD MEP and Inventor are two software tools that provide MEP professionals with a range of features, including mechanical, electrical, and plumbing content, tube and pipe routing, assembly environment, XREF, AnyCAD, and more.

You can also check out our Fabrication page to learn more about Fabrication workflows for MEP.

Ready to get your MEP Design Connected?

Discover how Autodesk Product Design & Manufacturing Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Product Design & Manufacturing Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Connected Structural Design with Autodesk Product Design & Manufacturing Collection

March 19, 2023

| No Comments

| AutoCAD, AutoCAD Mechanical, Autodesk Inventor, Fusion 360, Inventor, Inventor Professional, Product Design & Manufacturing Collection, Structural Steel

Connected Structural Design with Autodesk Product Design & Manufacturing Collection

Transforming Structural Design with Autodesk Product Design & Manufacturing Collection

The Autodesk Product Design and Manufacturing Industry Collection is a comprehensive set of software tools for designing and manufacturing products across various industries. This collection includes software for 3D design, engineering, and production, and it’s ideal for product designers and manufacturers. In this blog post, we will explore the connected structural design tools in Autodesk Inventor and how they can be used to design and analyse structures. We will also discuss how the structural designs from Inventor can be used in Plant 3D to design production plants, oil and gas projects, and how to export dwg or adsk file formats to AutoCAD.

Structural Design and Analysis Tools in Autodesk Inventor

Autodesk Inventor offers a range of structural design and analysis tools that enable users to create complex structures with ease. The software comes equipped with frame generator, sheet metal, and assembly modeling environment to facilitate the design of structural elements. These tools are ideal for designers and engineers who need to create robust and reliable structures.

Exporting dwg or adsk File Formats to AutoCAD

Autodesk Inventor offers the ability to export designs in dwg or adsk file formats to AutoCAD. This feature enables users to work with the designs in AutoCAD, which is useful for designers who need to create 2D drawings or for those who prefer working in AutoCAD. The process of exporting designs is straightforward and requires only a few clicks.

Structural Design in Plant 3D

Plant 3D is a specialized toolset of AutoCAD that allows users to design and analyse production plants, oil and gas projects, and other industrial structures. Users can utilise structural designs created in Inventor in Plant 3D to design various elements such as pipe supports, equipment, and structural steel. This feature enables designers to create a comprehensive 3D model that includes all the structural and mechanical elements of a plant.

Frame Generator

Frame Generator is a powerful tool in Autodesk Inventor that enables users to design and create structural frames with ease. This tool allows users to create complex frame structures using pre-defined structural shapes or custom shapes. The tool also provides the ability to create structural members with different cross-sections and apply various constraints to optimize the frame’s strength and stability.

Frame Analysis

Frame Analysis is a feature in Autodesk Inventor that allows users to analyse and optimize frame structures. This feature provides a comprehensive set of tools for analysing frames, including calculating the frame’s natural frequencies, calculating the stresses and displacements, and evaluating the frame’s stability. The tool also provides the ability to modify the frame’s design and re-run the analysis to optimise the frame’s performance.

Simulation

Autodesk Inventor offers simulation tools that enable users to simulate various types of mechanical and structural behavior, including structural analysis, motion analysis, and dynamic simulation. These tools allow users to evaluate the structural and mechanical performance of their designs, identify potential issues, and optimize their designs for better performance.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

Nastran Structural Simulation Analysis

Nastran Structural Simulation Analysis is a comprehensive simulation tool in Autodesk Inventor that allows users to simulate and analyse complex mechanical and structural behaviour. This tool provides advanced simulation capabilities for analysing stress, deformation, vibration, and other mechanical behaviours. The tool also provides the ability to perform finite element analysis (FEA) to optimize designs for better performance.

Structural Design Workflow

The workflow from designing a structural design in Inventor to performing a frame analysis and Nastran structural analysis study involves several steps, which are as follows:

Step 1: Designing the Structural Design in Inventor

The first step is to create the structural design in Autodesk Inventor using tools such as Frame Generator, Sheet Metal, or Assembly Modelling Environment. The design can include various elements, such as beams, columns, braces, and trusses.

Step 2: Preparing the Model for Analysis

Once the structural design is created, the next step is to prepare the model for analysis. This involves assigning material properties, loads, and boundary conditions to the model. Material properties include properties such as modulus of elasticity, Poisson’s ratio, and density, while loads and boundary conditions can include forces, moments, supports, and constraints.

Step 3: Performing a Frame Analysis

The next step is to perform a frame analysis to evaluate the structural behaviour of the design. In Autodesk Inventor, Frame Analysis can be performed using the Frame Analysis Environment. This environment allows users to perform various types of analysis, including static, modal, and buckling analysis. Frame Analysis can be used to calculate natural frequencies, stresses, and deformations of the structure.

Step 4: Performing a Nastran Structural Analysis Study

If more advanced analysis is required, a Nastran Structural Analysis Study can be performed. Nastran is a finite element analysis software that is integrated into Autodesk Inventor. This tool provides advanced simulation capabilities for analysing stress, deformation, and other mechanical behaviours. It can also be used to perform more complex analyses, such as dynamic and thermal analysis.

Step 5: Optimizing the Design

Once the analysis is complete, the next step is to optimize the design based on the results of the analysis. This can involve modifying the structural design or adjusting the loads and boundary conditions to improve the performance of the design.

Step 6: Iterating the Process

Finally, the design process is iterated, with the model being adjusted and re-analysed until an optimal design is achieved. This can involve going back to Step 2 and re-defining the loads and boundary conditions, or adjusting the design in Inventor and re-analysing in the Frame Analysis or Nastran Structural Analysis Study environment.

In summary, the workflow from designing a structural design in Inventor to performing a Frame Analysis and Nastran Structural Analysis Study involves several steps, including preparing the model for analysis, performing the analysis, optimizing the design, and iterating the process until an optimal design is achieved. These tools in Inventor allow for the creation of complex structures and ensure their mechanical behaviour is analysed and optimized for performance.

Ready to get your Structural Design Connected?

Discover how Autodesk Product Design & Manufacturing Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Product Design & Manufacturing Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Connected Mechanical Design with Autodesk Product Design & Manufacturing Collection

March 19, 2023

| No Comments

| AutoCAD, AutoCAD Mechanical, Autodesk Inventor, Fusion 360, Inventor, Inventor Professional, Product Design & Manufacturing Collection

Connected Mechanical Design with Autodesk Product Design & Manufacturing Collection

Streamlining Mechanical Design with Product Design & Manufacturing Collection: A Guide to Connecting Autodesk Inventor, Fusion 360, AutoCAD, and AutoCAD Mechanical

Mechanical design is an intricate process that requires the use of multiple software tools. Each software tool has its unique features, which are essential for creating a functional design. The Product Design & Manufacturing Collection from Autodesk brings together all the necessary tools for mechanical design. This collection includes Autodesk Inventor, Fusion 360, AutoCAD, and AutoCAD Mechanical. By using these tools together, mechanical design becomes more streamlined and efficient. In this guide, we will explore the benefits of using these tools in conjunction with each other and provide a step-by-step process on how to connect them for maximum efficiency.

Overview of Product Design & Manufacturing Collection

The Product Design & Manufacturing Collection from Autodesk is a comprehensive collection of software tools that are designed to streamline the product design process. The collection includes Autodesk Inventor, Fusion 360, AutoCAD, and AutoCAD Mechanical. These tools work together seamlessly, allowing engineers and designers to collaborate on projects and share data across platforms. By using these tools together, teams can reduce errors, improve accuracy, and speed up the design process.

The Benefits of Using Autodesk Inventor, Fusion 360, AutoCAD, and AutoCAD Mechanical Together

The benefits of using Autodesk Inventor, Fusion 360, AutoCAD, and AutoCAD Mechanical together are numerous. First, the tools provide a comprehensive set of features that cover all aspects of mechanical design, from 3D modeling to simulation to manufacturing. Second, the tools are designed to work together seamlessly, allowing teams to collaborate on projects and share data across platforms. Third, the tools are constantly updated and improved, ensuring that users always have access to the latest features and functionality.

Connecting Autodesk Inventor, Fusion 360, AutoCAD, and AutoCAD Mechanical

To connect Autodesk Inventor, Fusion 360, AutoCAD, and AutoCAD Mechanical, follow these steps:

Install all the software tools from the Product Design & Manufacturing Collection on your computer.

Open Autodesk Inventor and create a new part or assembly.

From the menu bar, select “Manage” and then select “Import/Export.”

From the dropdown menu, select the file format you wish to use (e.g., DWG, DXF, IGES).

Select the file you wish to import and click “Open.”

The file will be imported into Autodesk Inventor, and you can start working on it.

Using Autodesk Inventor, Fusion 360, AutoCAD, and AutoCAD Mechanical for Mechanical Design

Autodesk Inventor is a powerful 3D CAD software that is used for mechanical design. It allows designers to create 3D models of parts and assemblies, perform simulations, and generate documentation. Fusion 360 is a cloud-based CAD/CAM software that allows designers and engineers to collaborate on projects in real-time. AutoCAD is a 2D CAD software that is used for creating detailed drawings, and AutoCAD Mechanical is a 3D CAD software that is used for mechanical design.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

Unlocking the Power of AnyCAD: Combining Autodesk Inventor, Fusion 360, and AutoCAD Mechanical for Seamless Mechanical Design

AnyCAD in Autodesk Product Design & Manufacturing Collection lets you transfer 3D models between different software platforms effortlessly, making collaboration on complex projects easier. AnyCAD enables you to link Autodesk Inventor, Fusion 360, and AutoCAD Mechanical to create an integrated mechanical and electrical design with automatic updates. The 2D detailing in AutoCAD Mechanical benefits from AnyCAD’s ability to import the Inventor model, maintaining a single source of truth for design data and reducing the risk of errors.

AnyCAD and DWG Files

Autodesk Inventor and AutoCAD are powerful design tools for 3D and 2D design, respectively. With AnyCAD, users can import AutoCAD DWG files into Inventor and work with both 2D and 3D geometry. AnyCAD eliminates the need for manual conversions and allows for faster and more accurate design changes. It also enables users to work with annotations and other design details in both environments, improving collaboration and communication between stakeholders. Overall, AnyCAD streamlines the design process, making it more efficient and accurate.

Combining all Designs from Fusion 360 and AutoCAD Mechanical into Autodesk Inventor

The Product Design & Manufacturing Collection from Autodesk offers a suite of powerful tools for designing and manufacturing products. One of the major benefits of this collection is the ability to seamlessly integrate designs from different software platforms, such as Autodesk Inventor, Fusion 360, and AutoCAD Mechanical. In this post, we’ll explore how to combine all designs from Fusion 360 and AutoCAD Mechanical into Autodesk Inventor.

Importing Fusion 360 designs

To import a Fusion 360 design into Inventor using Anycad, you first need to export the design as a STEP file from Fusion 360. In Fusion 360, select the design you want to export, go to the File menu, and select Export. Choose the STEP file format and save the file.

Next, open an Inventor assembly and go to the Anycad tab. Click on the Import command and select the exported STEP file. The Fusion 360 design will now be imported into the Inventor assembly, where you can combine it with other designs.

Importing AutoCAD Mechanical designs

To import an AutoCAD Mechanical design into Inventor using Anycad, you need to export the design as a DWG file from AutoCAD Mechanical. In AutoCAD Mechanical, select the design you want to export, go to the File menu, and select Save As. Choose the DWG file format and save the file.

Next, open an Inventor assembly and go to the Anycad tab. Click on the Import command and select the exported DWG file. The AutoCAD Mechanical design will now be imported into the Inventor assembly, where you can combine it with other designs.

Combining all designs in Inventor

Once you’ve imported the designs from Fusion 360 and AutoCAD Mechanical into Inventor, you can start combining them. You can use the assembly tools in Inventor to mate and constrain the different components, creating a complete 3D model. You can also use the drawing tools in Inventor to create 2D drawings and detailing.

Combining all Designs into AutoCAD Mechanical

When using the Product Design & Manufacturing Collection, it’s possible to combine the strengths of different software programs to create a more comprehensive mechanical design workflow. One example of this is using Autodesk Inventor to create a 3D mechanical model, which could have a Fusion 360 model linked into it.

Once the 3D model is complete, it can be imported into AutoCAD Mechanical to further refine the design and create detailed 2D drawings. AutoCAD Mechanical offers a range of powerful tools for creating mechanical drawings, including the ability to create and edit mechanical symbols, automate common tasks, and easily generate bills of materials.

To import the Inventor model into AutoCAD Mechanical, simply use the “Insert” command to bring the 3D model into the 2D workspace. Once the model is in place, you can use AutoCAD Mechanical’s powerful annotation tools to add dimensions, notes, and other details to your drawings.

It’s worth noting that AutoCAD Mechanical also has a range of built-in tools for working with Inventor files directly, including the ability to import Inventor assemblies and parts directly into the software. This can be a great way to leverage existing Inventor designs and incorporate them into your AutoCAD Mechanical workflows.

Overall, the combination of Inventor, Fusion 360, and AutoCAD Mechanical offers a powerful suite of tools for mechanical design and detailing. By leveraging the strengths of each software program, designers can create comprehensive mechanical designs and detailed 2D drawings with greater efficiency and accuracy.

Ready to get your Mechanical Design Connected?

Discover how Autodesk Product Design & Manufacturing Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Product Design & Manufacturing Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Connected Design with Autodesk Product Design & Manufacturing Collection

March 19, 2023

| No Comments

| 3ds Max, AutoCAD, AutoCAD, AutoCAD Electrical, Autodesk Inventor, CAM, CDE (Common Data Environment), Collections, Data Management, Data Management for Manufacturing, Fusion 360, Inventor, Inventor Professional, Product Design & Manufacturing Collection, Vault

Connected Design with Autodesk Product Design & Manufacturing Collection

Connecting Autodesk Inventor with Other Software Tools for Efficient Design

Are you looking for ways to streamline your product design and manufacturing process? Autodesk Product Design & Manufacturing Collection which includes Autodesk Inventor, a powerful 3D modelling software, can be a game-changer for your business. Not only can Inventor help you create complex designs with ease, but it can also connect with other Autodesk software tools for a more efficient and integrated design process.

Here’s how Product Design & Manufacturing Collection and Inventor can connect with other Autodesk software tools to improve your design workflow:

Connected Design with Product Design & Manufacturing Collection

Inventor can be used in conjunction with other Autodesk software tools such as Revit, 3ds Max, and AutoCAD. This “connected design” approach allows for seamless data exchange between software applications, improving collaboration and reducing the risk of errors and delays.

Using Inventor and AutoCAD to improve Design and Collaboration

Inventor and AutoCAD can be used together to create 2D drawings of 3D models. This integration streamlines the design process and allows for quick changes to be made to drawings as the design evolves.

Collaboration in Navisworks

Models can be imported into Navisworks for simulation and analysis. This integration allows designers to evaluate the performance of their designs and identify potential issues before production begins.

Connected Design with 3ds Max

Export 3D models to 3ds Max for high-quality rendering and visualization. This integration allows designers to create photorealistic images and animations of their designs, making it easier to communicate their vision to stakeholders and customers.

Connecting Product Design & Manufacturing Collection to Revit

Inventor can import Revit models to create detailed designs for mechanical and electrical components. Revit models can also be exported to Inventor for further refinement.

Autodesk Shared Views: Collaborate Easily with Stakeholders

Autodesk Shared Views is a cloud-based tool that enables users to share their designs and models with stakeholders in real-time. It simplifies the review process by allowing users to share a link to the Shared View, where reviewers can access the design directly in their browser. Shared Views supports multiple reviewers and provides markup tools for collaboration. The tool also includes version control features for tracking changes and viewing previous versions. Being cloud-based, Shared Views requires no software or hardware installation, making it accessible from any device with an internet connection.

How Autodesk Inventor Helps You Achieve BIM Interoperability

Autodesk Inventor simplifies BIM workflows and enhances collaboration with other stakeholders by providing BIM interoperability tools. These tools allow you to create, import and export BIM data in various formats, enabling you to work more efficiently with software like Revit and Navisworks. Inventor’s BIM Content Creation, BIM Content Import, BIM Project Review and BIM-to-Fabrication tools provide accurate and consistent designs. These tools can be used in conjunction with the Product Design and Manufacturing Industry Collection, which includes additional software tools. Start using Inventor’s BIM interoperability tools today to streamline your workflow and deliver better projects.

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

Revolutionizing Electronics Design: How Autodesk Inventor's PCB Interoperability Tools are Changing the Game

Inventor’s PCB Interoperability Tools

Inventor offers a suite of tools for working with PCBs, including:

ECAD-MCAD Collaboration
PCB layout import
Design rule checking
Export to Manufacturing

Product Design & Manufacturing Collection Connected Matrix

Software	Description	File Type	Command	Import/Export	Link
Inventor	3D mechanical design software used for creating detailed product designs and engineering documentation	IPT, IAM	OPEN, MODEL, DRAWING, PUBLISH	Import: DWG, DXF, STEP, IGES, SAT, CATIA, SolidWorks, Pro/E, NX	Export: DWG, DXF, STEP, IGES, SAT, CATIA, SolidWorks, Pro/E, NX
AutoCAD	2D and 3D computer-aided design software used for creating blueprints, schematics, and models	DWG, DXF, DWF	DRAWING, MODEL, VIEW, PLOT	Import: DWG, DXF, DWF, PDF, STEP, SAT, IGES, STL	Export: DWG, DXF, DWF, PDF, STL, OBJ, FBX
Fusion 360	Integrated CAD, CAM, and CAE software used for product development and manufacturing	F3D, IPT, IAM	OPEN, MODEL, DRAWING, CAM	Import: DWG, DXF, STEP, IGES, SAT, SolidWorks, Pro/E, NX	Export: DWG, DXF, STEP, IGES, SAT, SolidWorks, Pro/E, NX
Alias AutoStudio	Industrial design software used for creating and visualizing product designs	OBJ, STL	OPEN, MODEL, RENDER	Import: IGES, STEP, STL, OBJ, SolidWorks, CATIA, Pro/E	Export: IGES, STEP, STL, OBJ, SolidWorks, CATIA, Pro/E
Navisworks	Project review software used for 3D coordination, model analysis, and clash detection	NWD, NWF	OPEN, APPEND, EXPORT, PUBLISH	Import: DWG, DWF, DGN, IFC, SKP, FBX, 3DS, OBJ	Export: DWF, DWFx, NWC, NWF, FBX, 3DS, OBJ

HSMWorks	Integrated CAM software used for programming CNC machines	IPT, IAM	SETUP, TOOLPATH, POST	Import: DWG, DXF, STEP, IGES, SAT, SolidWorks, Pro/E, NX	Export: DWG, DXF, STEP, IGES, SAT, SolidWorks, Pro/E, NX
Nastran In-CAD	Finite element analysis (FEA) software used for simulating and analyzing product designs	NAS, OP2	OPEN, ANALYSIS, RESULTS	Import: IPT,

Interoperability between design and analysis software

Import/Export: Inventor supports a variety of file formats for import and export, including STEP, IGES, and SAT. This flexibility allows for easy data exchange between Inventor and other software tools, improving collaboration and reducing errors.

Collaboration

By connecting Inventor with other Autodesk software tools, designers can create complex designs with ease, reduce errors and delays, and streamline the design process. With improved collaboration and data exchange, the product design and manufacturing process can be more efficient and cost-effective.

In conclusion, Autodesk Inventor is a powerful tool that can be used in conjunction with other Autodesk software tools to improve the design workflow. By following the tips outlined in this article, you can optimize your design process, reduce errors and delays, and create high-quality designs that meet your business needs.

Ready to get your Design Connected?

Discover how Autodesk Product Design & Manufacturing Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Connected Design with Product Design & Manufacturing Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Connected Electrical Design with Autodesk Product Design & Manufacturing Collection

March 19, 2023

| No Comments

| AutoCAD Electrical, Autodesk Inventor, CDE (Common Data Environment), Data Management, Data Management for AutoCAD, Data Management for Civil and Infrastructure, Data Management for Manufacturing, Fusion 360, Inventor, Inventor Professional, Product Design & Manufacturing Collection, Vault, Vault

Connected Electrical Design with Autodesk Product Design & Manufacturing Collection

Autodesk Inventor and AutoCAD Electrical are two of the most popular software applications used in engineering design, particularly in electrical and electronic design automation. While each has its own strengths, combining these two powerful tools can lead to even greater design efficiency and productivity. In this article, we will explore how Autodesk Inventor and AutoCAD Electrical work together, focusing on the EMX project, syncing files, and how they can be combined with Fusion 360 for advanced PCB design.

Autodesk Inventor and AutoCAD Electrical: Combining Forces for Better Schematic Design

Introduction to Autodesk Inventor and AutoCAD Electrical

Autodesk Inventor is a 3D modeling software used primarily for mechanical engineering design. It allows users to create precise 3D models of mechanical parts, assemblies, and even entire machines. On the other hand, AutoCAD Electrical is a specialized software used for electrical engineering design. It provides a comprehensive set of tools for creating and modifying electrical control systems, wiring diagrams, and other related documentation.

The EMX Project: Enhancing Design Efficiency and Productivity

The EMX Project is an add-on for AutoCAD Electrical that enables users to create 3D representations of their electrical schematics in Autodesk Inventor. This makes it possible to visualize the electrical components in 3D space, making it easier to detect potential design issues before fabrication. The EMX project also allows users to import Inventor models into AutoCAD Electrical, giving them a more realistic representation of the actual components used in their designs.

Syncing Files Between Inventor and AutoCAD Electrical

Another advantage of using Autodesk Inventor and AutoCAD Electrical together is the ability to sync files between the two applications. This allows users to transfer 3D electrical harness models from Inventor to Electrical or vice versa, as well as easily update changes made in one application to the other. This seamless integration not only saves time but also ensures accuracy and consistency in design documentation.

Combining with Fusion 360: Taking PCB Design to the Next Level

Fusion 360 is a cloud-based CAD/CAM platform that allows users to collaborate on projects in real-time. It integrates with both Autodesk Inventor and AutoCAD Electrical, enabling users to bring their schematic designs into the 3D modeling environment of Fusion 360 for more advanced PCB design. This integration streamlines the design process and helps eliminate errors by providing a seamless workflow from schematic design to PCB layout and manufacturing.

How to Get Started with Autodesk Inventor and AutoCAD Electrical

To get started with Autodesk Inventor and AutoCAD Electrical, users need to have a basic understanding of electrical engineering principles and practices. They also need to have access to both software applications, as well as the EMX Project add-on for AutoCAD Electrical. Additionally, users can benefit from online training resources, tutorials, and forums provided by Autodesk to help them master the software.

Revolutionizing Electronics Design: How Autodesk Inventor's PCB Interoperability Tools are Changing the Game

Ready to Get Connected?

Save up to 20% on Autodesk Software and Services

How to Achieve Connected Design with Autodesk Inventor and Eagle (Fusion 360)

Look no further than Autodesk’s connected design solution between Inventor and Eagle. This powerful combination allows for seamless collaboration between mechanical and electrical design teams. Autodesk Eagle, now a part of Fusion 360, is a popular PCB design tool that offers a range of powerful features to create schematics, layout designs, and manufacturing outputs. By integrating Eagle with Inventor, designers can easily incorporate PCBs into their mechanical assemblies and optimize the fit and function of their designs.

One key advantage of using Inventor and Eagle together is the ability to maintain a “single source of truth” for your design data. With the integration, design changes in one tool can be automatically propagated to the other, reducing the risk of errors and ensuring consistency across the design process. Another benefit of this connected design approach is the ability to visualize the PCB and its components in a 3D mechanical assembly context.

This allows designers to check for potential interferences, optimize the placement of the PCB and its components, and ultimately achieve a more efficient and cost-effective design. To get started with connected design between Inventor and Eagle, simply import your Eagle board file into Inventor.

From there, you can place the PCB into your assembly and start working on the integration with your mechanical components. Changes made to the PCB in Eagle will be reflected in Inventor, and vice versa.

Inventor’s PCB Interoperability Tools

Inventor offers a suite of tools for working with PCBs, including:

ECAD-MCAD Collaboration

PCB layout import

Design rule checking

Export to Manufacturing

Once the design is complete, Inventor can export the PCB design to the manufacturing process. This feature ensures that the design is accurate and ready for production.

Seamless Integration: How Autodesk Inventor and Fusion 360 Work Together for Streamlined PCB Design

https://www.autodesk.com/redshift/pcb-design-with-fusion-360/Autodesk Inventor and Fusion 360 are both powerful design tools that can be used for a wide range of applications. While Inventor is known for its advanced 3D design capabilities, Fusion 360 is a comprehensive product development platform that allows designers and engineers to work together in a collaborative environment.

Why Use Autodesk Inventor for PCB Design?

Connected Design with Product Design & Manufacturing Collection

Click a link below to learn more about Connected Design using the Autodesk Product Design & Manufacturing Collection

Ready to get your Electrical Design Connected?

Discover how Autodesk Product Design & Manufacturing Collection can streamline your workflow, increase productivity, and optimise your design process.

Get up to 20% Off Software or Services!

Contact us to find out how much money you can save on software, training or other services. Fill out the form below, by live chat, phone or email.

P: 1800 490 514 | E: info@designconsulting.com.au

Autodesk Access Replacing Autodesk Desktop Application (ADA)

March 5, 2023

| No Comments

| AutoCAD, AutoCAD, AutoCAD Electrical, Autodesk Collections, Autodesk Inventor, Autodesk News, Autodesk Products, Building Design Suite, Inventor Professional, Plant Design Suite, Product Design & Manufacturing Collection, Product Design Suite, Revit, Uncategorized

On March 15, 2023, Autodesk Desktop Application (ADA) will be replaced by Autodesk Access. This will provide a firm foundation for future capabilities, making it simple to manage new Autodesk product updates.

The new Autodesk Access has been built with trust, security and choice in mind, providing many benefits, including:

Easy access to updates, new features, and defect fixes, keeping you productive without interfering with your workflows
Improved control over your user update experience
Enhanced security features while improving performance

How To Update To Autodesk Access

You will automatically receive Autodesk Access if you currently have the Autodesk Desktop App or if you install a new Autodek product on or after March 15, 2023.

Starting March 15, you can download Autodesk Access here

Important Notice: User Permissions

Please note that when Autodesk Access is installed, by default, users will have access to install updates if they have administrator rights. To prevent users from manually installing updates via the new Autodesk Access, use the following Registry Key. We recommend completing this step before March 15th. For more guidance on how to set this key for your users, please see this support article. See key details below:

Create a new key in the HKCU/Software/Autodesk/ODIS folder.
- Key name: DisableManualUpdateInstall
- DWORD value: 1

This is Autodesk’s first step in an exciting roadmap to give customers a simple, transparent update experience with full control and easy access to new product features. Stay tuned for further updates from Design Consulting as Autodesk continue to release new features and improvements.

More Information

Contact us on 1800 490 514, info@designconsulting.com.au, by live chat or fill out the form below to get more information on how to best manage your Autodesk software. Our team of experts have saved our clients thousands of dollars by helping them make smart decisions around how to best structure their investment in technology for maximum return on investment. We’d be happy to audit your existing technology and recommend any changes that you could benefit from.

February 2023 Autodesk Update: What’s New

February 15, 2023

| No Comments

| 3ds Max, Architecture, AutoCAD, Autodesk Collections, Autodesk Inventor, Autodesk Maya, Autodesk News, Autodesk Products, Building Design Suite, Civil 3D, Collections, Construction, Defence, Fusion 360, Infrastructure, Inventor, Inventor Professional, Manufacturing, Maya, Plant Design Suite, Product Design & Manufacturing Collection, Product Design Suite, Revit, Revit, Uncategorized, Utilities, Visualisation, Visualisation

Discover the latest news and new features from Autodesk, Click the links below for more information.

AutoCAD and AutoCAD LT

Update to AutoCAD 2023.1 – see what’s new (blog post)
Get bite-sized fixes, shortcuts, advice & tips (AutoCAD Community)
Subscribe to the AutoCAD podcast (blog post)

Architecture, Engineering & Civil Engineering

Revit update: see what’s new in Revit 2023.1 (blog post)
See what’s New In Civil 3D 2023.2 and InfraWorks 2023.1 (blog post)
Sheet Set Manager for Civil 3D updated to be cloud-first (blog post)

Design & Manufacturing

Inventor update – What’s new in 2023.2 (blog post)
Fusion 360 update – What’s New November 2022 (video)
Share ideas for future product features directly with the Inventor team (forum)

Media & Entertainment

See What’s New in Maya (timeline)
New learning courses for 3ds Max, Maya & Arnold (courses)
Level up your Games Studio with ShotGrid (webinar)

Admin resources and more

More Information

Modern File Workflow Management Saves Time & Tracks Changes At Defence Contractor Daronmont Technologies

February 12, 2023

| No Comments

| AutoCAD, Autodesk Inventor, Data Management, Data Management for Manufacturing, Defence, Inventor, Inventor Professional, JP Pro, Manufacturing, Product Design & Manufacturing Collection, Training, Uncategorized, Vault

Modern File Workflow Management Saves Time & Tracks Changes At Defence Contractor Daronmont Technologies

Automating tired design document and file management processes can transform a business in more ways than one. Read on to see how defence contractor Daronmont Technologies engaged with Design Consulting to improve its manufacturing processes.

With rapid growth and an expanding team of designers, Australian defence product engineering firm Daronmont Technologies was looking to further improve process efficiency with automation of design document and file management.

Manual processes and disconnected workflows resulted in a lot of time spent working with CAD files and publishing export file formats for production. And in manufacturing, design delays can have a flow on impact on orders, production, and deliveries.

Adding to the challenge were compliance and security problems. If multiple staff wanted to access the same dataset there was limited security or access control structure, opening the possibility of files being modified without an audit or revision trail.

Ensuring that the published data was created based on the latest CAD design is crucial for Daronmont.

Improved File Handling Was An Immediate Goal

With multiple people working on developing the product design, the team at Daronmont called for a better approach to structure and automate design export assets.

For example, if a team member needed to process more than 100 files, exported in a mix of formats, it was a largely manual process taking upwards of eight hours depending on the complexity of the files.

A more modern, less time-consuming system that leveraged the existing Vault Pro database for file handling was the clear goal.

John Dineen, Senior Draftsperson and Drawing Manager at Daronmont Technologies, said using Autodesk brings many time, quality and data control benefits; however, revision control of product design documents is a must in a multi-user environment.

Design Consulting Stepped In With Automation

As an Autodesk customer, Daronmont Technologies has been designing unique products for some time and uses the Vault Pro product data management solution to extend automation throughout the business.

The company worked with the Design Consulting team to implement custom automation tools for data management and job processing alongside Vault Pro.

Design Consulting Managing Director, Damien Jovica, said manufacturers like Daronmont Technologies have a good opportunity to use automation to improve what they already have.

“We integrated our JP-Pro app to automate file management, making file export processing on multi-page documents less manual and time-consuming,” Jovica said.

JP-Pro provides a mix of automated and manual (on demand) publishing options to export a range of file types, including pdf, dxf, step and parasolid.

In addition to JP-Pro, a Visio plug-in for Vault was used to synchronise AutoCAD Electrical schematics and Visio Shape Data to Vault Properties. This eliminated the need to manually enter and map the data in Vault for Visio files, thus saving time and reducing errors.

Automation Workflow Is Essential For Modern Manufacturing

The resulting business outcome for Daronmont Technologies was an immediate improvement in efficiency and a significant decrease in operating costs.

With a modern manufacturing automation workflow, staff are less burdened by manual file handling and this new level of efficiency enables faster product development and more creativity.

“Design Consulting worked with us to ensure their apps worked in a way that helped our entire business,” Dineen said.

Daronmont are also benefiting from improved document control compliance and enhanced security.

“Adding automation to manual workflows has delivered instant results for defence contractor Daronmont Technologies,” Jovica said. “By making use of Autodesk and our add-ons the company has saved time and money and reduced its exposure to errors.”

Daronmont Technologies is now better positioned to innovate faster across its engineering portfolio.

Download the full case study here.

About the client

- Daronmont Technologies

- Adelaide, South Australia

Autodesk Solutions

- Vault Pro™

- Autodesk Inventor Pro™

- AutoCAD™

Product Training

- July 2021

Learn More About Autodesk Vault Data Management Solutions

Design Consulting are Autodesk Vault and Data Management specialists. From large multi-site environments with 500+ users, to replicated environments to small 1 user solutions, we know which Vault to deploy, the IT infrastructure required, how to configure and understand various industry requirements to provide the right data management solution. C;lick below to learn more about Autodesk Vault Data Management Solutions or complete the from for a free consultation with one of our data management experts.

Book Your Free Consultation

Contact us on 1800 490 514, info@designconsulting.com.au, by live chat or fill out the form below to book in your free consultation with one of our workflow management specialists. We have a team of experts ready to help improve your workflows for maximum return on your technology investment. Discover how Design Consulting can help your organisation solve problems and take advantage of opportunities with seamless integration of the latest technology into your workflows.

- Consulting

- Programming

- Systems Integration

- Training

- Documentation

Project Duration

- 180 days

Delivery Date

- July 2021

Learn More About Autodesk Vault Data Management Solutions

Book Your Free Consultation

- Vault admin

- User training

- Visio Integration

- JP-Pro

Professional Services

- Consulting

- Programming

- Systems Integration

- Training

- Documentation

Project Duration

- 180 days

Delivery Date

- July 2021

Learn More About Autodesk Vault Data Management Solutions

Book Your Free Consultation

Autodesk Portal Gets New Usage Reporting Features

February 3, 2023

| No Comments

| 3ds Max, Advance Steel, Architecture, AutoCAD Electrical, Autodesk Inventor, Autodesk News, Autodesk Products, Building Connected, CADmep, Civil 3D, Collections, Construction, Defence, estMEP, Fabrication, Infrastructure, Infrastructure, Manufacturing, Product Design & Manufacturing Collection, Revit, Software, Structural Steel, Utilities

NEW Autodesk Usage Report

Autodesk have announced that there are new usage reporting features within the Autodesk Account Management Portal for Autodesk accounts.

Coming soon, this new reporting tool will be found under Usage Report. Whether your users are on Autodesk subscriptions or Autodesk Flex licenses, you can now view the product usage details for all of your users on one single page with Usage Report. All admins on all Autodesk plans will have access to the new Usage Report.

Have a look in the reporting section of your account. When the new feature is activated, you will see a snapshot of important details for both subscriptions and Flex. The information available in the new reporting tool ncludes:

Total number of Autodesk subscriptions for your team(s)
The number of active or inactive users
The number of Flex tokens used and Flex tokens remaining
The monthly average Flex token usage

You now have easy access to all of this data at your fingertips with a single report showing usage across both Autodesk Flex and Autodesk Subscriptions.

As you scroll down the report you will see a list of users with simple summaries showing:

Which Autodesk products they’re using
The average number of days they use each product per month
How many Flex tokens they’ve used.

You can use the report to differentiate between frequent and infrequent users to adjust and optimize licenses for your team. For example, you can identify light users and assign them Flex licenses.

Clicking on a user, you can drill down for more detailed information on that particular user as shown below:

Additionally, you can use filters to arrange your data and identify specific information of interest. For example, you can filter by products, teams or access type. Any filters you apply will also be carried over to the export functionality if you choose to export your data for additional analysis and insights outside of Usage Report, in Microsoft Excel or a Google Sheet for example.

The new Usage Report provides a single view of how all of your Autodesk users are using their licenses. The new Usage Report will help you identify patterns and make better decisions. For example, the new Usage Report can help you decide:

Which users might benefit from using Flex or subscription
When to buy more subscriptions or tokens,
Which inactive subscriptions you can reassign

Coming Soon

This new reporting feature is not available yet. When it is launched, you will find it in the Reporting menu as shown below:

More Information

Contact us on 1800 490 514, info@designconsulting.com.au, by live chat or fill out the form below to get more information on how to best manage your Autodesk licenses and tokens. Our team of experts have saved our clients thousands of dollars by helping them make smart decisions around how to best structure their investment in technology for maximum return on investment. We’d be happy to audit your existing license structure and recommend any changes that you could benefit from.

Inventor and Revit Fabrication Workflows

November 18, 2022

| No Comments

| Autodesk Inventor, Inventor, Inventor Professional, Revit, Structural Steel

Inventor Revit interop Moving at the Speed of Business

Inventor users working with Revit have always found the data exchange tedious, with huge Revit models taking time to import, naming conventions not coming through, only an Element ID, and then once this bloated model came through, having to work with your assembly and the imported Revit model, working at a snails pace, but that all changed when Autodesk introduced Revit rvt files being supported in AnyCAD, a file reference tool in Autodesk Inventor.

Revit to Inventor

inventor 2022 image factory dataset 02 Moving at the Speed of Business

When importing a Revit rvt file, the Inventor user has the option to:

Import it (convert it to an Inventor model) or
Reference it (link it in, like an xref), so if the rvt file changes, it will update

Once you reference the file in, you can start modelling around it or place it in an existing assembly and detail it.

Inventor Revit 1 Moving at the Speed of Business

Inventor Revit 2 Moving at the Speed of Business

Click here to learn more or enquire below.

Get in Touch

DC is an authorised Autodesk Reseller providing products and services for the Architecture, Engineering, Construction, Infrastructure and Manufacturing Sectors. Feel free to contact us on 1800 490 514, info@designconsulting.com.au, by live chat or fill out the form below.

What’s New in Revit 2023.1

November 16, 2022

| No Comments

| Autodesk Inventor, Inventor, Inventor Professional, Revit, Structural Steel

What's New in Revit 2023.1

The following has been introduced into the latest Revit 2023.1 Release:

The introduction of Twinmotion for Revit to all Revit subscribers through a partnership with Epic Games. Starting with the release of Revit 2023.1, Twinmotion for Revit is included with all AEC Collection, Revit standalone, Flex, and Education subscriptions.
Design and documentation enhancements that advance functionality for project navigation, sheets, commands, and views
Upgrades to MEP modeling tools
Analytical to physical model automation for structural analysis in a BIM paradigm
An announcement of the release of Advanced Electrical Design for Revit by Schneider Electric, an Autodesk strategic partner

Twinmotion for Revit

Autodesk announced that they went into a partnership with Epic Games and now Twinmotion is officially included with Revit and it looks like it’s the plug-in for Revit rather than the standalone Twinmotion product.

Autodesk Revit and Architecture Engineering and Construction Collection subscribers should be able to open their Autodesk Desktop App and start downloading Revit 2023.1 and Twinmotion for Revit now.

Check out the Revit Blog for further details

Get in Touch

DC is an authorised Autodesk Reseller providing products and services for the Architecture, Engineering, Construction, Infrastructure and Manufacturing Sectors.

Feel free to contact us on 1800 490 514, info@designconsulting.com.au, by live chat or fill out the form below.

End Construction Manufacturing Siloes with a Digital Fabrication Platform

November 7, 2022

| No Comments

| Advance Steel, Autodesk Inventor, CADmep, CAMduct, estMEP, Fabrication, Inventor Professional, Revit, Structural Steel

End Construction Manufacturing Siloes with a Digital Fabrication Platform

Managing a construction project is challenging at the best of times, but manual and inefficient fabrication workflows can easily drag out any build.

With modern digital collaboration and workflow platforms now available, building and construction managers no longer need to play guesswork with their metal fabrication requirements.

In this blog we will look at the challenge of disparate workflows and how Design Consulting can integrate a number of tools to streamline fabrication to improve project management and overall building quality.

Fabrication Workflow Still Very Manual

Most construction projects use some amount of steel for structural members, perforated sheets for facades and tubing for balustrades.

This construction-level fabrication is a form of “construction manufacturing” and the fabrication requirements are generally unique to the project.

As a result of the unique requirements the industry is accustomed to fragmented processes with siloed technology.

For example, estimators might have their own way of requesting what is needed in a PDF or spreadsheet document; a design team might use CAD for design, but not with fabrication-level tools; and the machining team have their separate software and processes.

Then there are external stakeholders. Construction teams routinely have to send and receive designs from customers, consultants and regulators, who also might have something else to add.

Time and Quality Costs Add Up

What is all this manual work costing? Quite a lot in time and materials.

Construction industry leaders need to assess how they are doing fabrication workflow now and are the tools in use connected with team members and customers?

In the corporate world, people don’t print out a document and surface mail it to someone and then repeat the process over and over, but that’s how bad the manual processes can be with fabrication workflows.

The construction industry is overdue for a change.

Moving to Digital Fabrication Workflow

Moving to a digital fabrication workflow platform is a good example of digital transformation in the construction sector.

It is about taking the design from the start and going through to manufacture with the same data source, so there is no need to recreate anything in a different program that is disconnected.

With a modern digital collaboration platform, when a change happens it flows through to all stakeholders by connecting departments, end-users and software platforms

For example, with estimating most people use a spreadsheet and manually draw lines in PDFs. Why do that when you can extract data from a model and use design estimating tools?

The suite of Autodesk fabrication products work with its most popular CAD and analysis tools for a good level of integration.

For example, Autodesk Fabrication CADmep gives you the ability to create fabrication-intent models of piping, plumbing and ductwork systems. Construction companies can connect CADmep with ESTmep, CADduct and Revit for complete end-to-end workflows.

For more information on how fabrication workflow products integrate with each other please see the documentation on our Fabrication page

Get in Touch

DC is an authorised Autodesk Reseller providing products and services for the Architecture, Engineering, Construction, Infrastructure and Manufacturing Sectors.

Feel free to contact us on 1800 490 514, info@designconsulting.com.au, by live chat or fill out the form below.

What’s New in Inventor 2022

April 5, 2021

| No Comments

| Autodesk Inventor, Inventor Professional, Manufacturing, Product Design & Manufacturing Collection

What's New in Inventor 2022

Inventor 2022’s focus has been on managing parts and assemblies through model states, further enhancements to Inventor/Revit interoperability, Fusion 360 interoperability, productivity and performance.

Model States – Parts: Manage manufacturing operations, dimensional variations, and simplified representations all on one part file.
Model States – Assemblies: Create multiple representations of an assembly within a single document to manage various assembly configurations and model simplification.
Revit Interoperability: Collaborate on BIM projects with improved tools to simplify and save native Revit project files in Inventor.
Productivity and Performance: See increased performance when editing large assemblies and improved productivity in features you use often.
Installation and Deployment: Get everyone on your team onto the latest release with a new installation and deployment experience.
Drawings: Use the camera views, manufacturing information, and lighting style from your 3D model in your 2D drawing views.
Installation and Deployment: Get everyone on your team onto the latest release with a new installation and deployment experience.

Model States - Parts and Assemblies

The new model states workflow enables users to create multiple presentations of a part or assembly within a single document, producing model state variations with different parameters, components, properties or simplification.

Model states are particularly useful for manufacturing processes, families of parts or sheet metal fold operations.

Model states can be used for the following:

Machining operations from the casted model to the final part
Sheet metal stages for multiple bend operations
Weldments for weld preparation and other machining operations
Product families that have different values for dimensions or features that are shown or suppressed
Alternative assembly positions to quickly switch between them visually or used for drawing views
Level of completion for each stage as your design gets assembled
Simplification levels for removing intellectual property or high levels of detail before export
iProperty information

Model states in assemblies can be used for configurations, weldment preparation or alternate positions.

Model States - Parts and Assemblies

Model states are particularly useful for manufacturing processes, families of parts or sheet metal fold operations.

Model states can be used for the following:

Machining operations from the casted model to the final part
Sheet metal stages for multiple bend operations
Weldments for weld preparation and other machining operations
Product families that have different values for dimensions or features that are shown or suppressed
Alternative assembly positions to quickly switch between them visually or used for drawing views
Level of completion for each stage as your design gets assembled
Simplification levels for removing intellectual property or high levels of detail before export
iProperty information

Model states in assemblies can be used for configurations, weldment preparation or alternate positions.

Assemblies - Instance Properties

Instance properties enables you to assign properties to individual component instances.

Assigned properties are stored in the parent assembly.

Unlike iProperties, Instance Properties don’t affect the referenced component files. Instance Properties are assigned to individual component instances only and can override custom iProperties.

Instance Properties are available in annotations such as balloons, leader notes and parts lists.

Simplification Improvements

The new simplification command provides:

IP removal prior to export
All settings are moved to the property panel
Built-in presets
Integrated Inventor to Revit workflow

This new command replaces both the shrinkwrap and shrinkwrap substitute commands.

Interoperability - Inventor + Revit

2022 allow users for the first time to export Inventor models to the Revit rvt project file format.

The simplification tool gives users the ability to select only the components and features that are required for export into Revit.

A Revit Exports browser folder is placed in the Inventor model browser. It is populated with a node for the exported model. As long as the model is maintained in the specified path, you can edit, preview, open in Revit or an associated application, or update the RVT model.

Interoperability - Inventor + Fusion 360

In addition to Revit interoperability, the new Inventor 2022 release includes a ‘Send to Fusion’ button making it easier to send data to Fusion 360 and Fusion Team.

Upon selection of the Send to Fusion 360 command, files will automatically get uploaded to your Fusion Team account.

In Fusion, you can make edits to your model geometry without changing the part in Inventor, this ideal when you need to prepare a part for CNC machining, 3D printing, or generative design.

Interoperability - Additional Workflows

Autodesk has also added QIF 3.0 support for PMI data and via the TAsk Scheduler, JT Export.

Productivity and Performance

The Autodesk Inventor team has continued to focus or Model, Drawing and Graphic Performance.

Parts, assemblies, drawings have all been enhanced year after year to deliver an efficient experience for everyone who works on complex parts and very large assemblies.

For those who enjoy editing parts while working in the assembly environment, you will find several performance improvements while editing sketches and visibility improvements. GPU’s are now better utilised for visual styles like displaying wireframe and silhouette edges and opening and closing documents is faster than ever.

Productivity - User Interface

Fillets and Property Palette

The fillet command has been moved to the property panel and these panels can be docked anywhere on your screen.

Assembly Constraints

New options allow users to visualise what is under constrained.

There’s a status filter which you can select to show the constraint state in the browser.

Measure Command

The new installer and online deployment builder, making it simpler to configure and launch.

Tube and Pipe

Angle attribute is now exported when saving one or multiple runs to ISOGEN .pcf files .

iLogic support for Model State

iLogic is expanded to support the following Model State workflows:

ThisDoc.Document support for Model State In a component occurrence of a model state document, the existing ThisDoc.Document property returns the member document.
- The ThisDoc.Document property is expanded to support returning the member document when running in a component occurrence of a model state document.
- The new ThisDoc.FactoryDocument property returns the factory document when running either in a top-level document or in an assembly component. In a component occurrence document, this returns the associated factory document. In a top-level document, this returns the same object as ThisDoc.Document.
- In a drawing, the new ThisDrawing.ModelFactoryDocument property returns the factory document for the first model view (or nothing if there is no model view).
- In a drawing view, the new ICadDrawingView.ModelFactoryDocument property returns the factory document for that view (or nothing if it is not a model view).
There is a new event called Model State Activated now available in the Event Triggers dialog box. This trigger occurs when a model state is activated. Use this trigger to run a rule in the document in which the event occurred.
New function lets you add a component in a specified model state
A new function called AddWithModelState is now available on the Components object (IManagedComponents interface). This function adds a managed occurrence of a part or subassembly.
Note: Capture Current State on an existing component that includes a model state, in turn creates code that includes AddWithModelState.
iLogic edit-in-place and model states
There are some restrictions on what you can do with iLogic rules when you are editing a model state component in place. In a model state, when a component member file is being in-place edited within an assembly:
- You can edit, run, and suppress rules.
- You can’t add or delete rules.
There is no change to edit-in-place support for components that aren’t model state components: You can add an iLogic rule:
- From the top level document.
- At the sub-component level in the in-place-edit environment.
Instructions to Modify an Occurrence Parameter with a Model State
Access the steps here: To Modify an Occurrence Parameter with a Model State.
Use the new Instance property snippets to read and create Instance Properties.
There is a new event named Any User Parameter Change in the Event Triggers dialog box. This event is triggered when you change the value of a User parameter.

Dark Theme

The Dark Theme that was introduced in the 2021 release has been fully implemented in 2022, including in the iLogic Rule Editor

Drawings

You can now change the look of shaded views in Drawings by changing the lighting style.

There are new drawing view options available to repurpose the camera views and 3D annotations created in the 3D model.Centerlines and center marks with extended lines now break when intersecting with dimensions, making it easier to read the dimension value.

Installation and Deployment

The measure command is updated to use a property panel style and has Done and Retry buttons to improve workflow and productivity. Measure in an assembly has a tool palette for quick access to selection filtering and a loop modifier.

You can now create a deployment that includes your customized settings in the iLogic Configuration dialog box.

Contact Us

If you would learn more about Autodesk software, please contact us by calling on 1800 490 514, by filling out the form or clicking the live chat in the bottom right-hand corner.

Autodesk Releases Inventor 2021.2

November 11, 2020

| No Comments

| Autodesk Products, Autodesk Inventor, Product Design & Manufacturing Collection, Product Design Suite, Software

Autodesk has released the latest 2021.2 version for Inventor on 30/10/2020 and looking through the list, I find that the list is on improvements and resolving issues rather than new features and functionality.

Here’s the list below. For more information visit the Autodesk Inventor Help page

Add-Ins – Cable and Harness

Resolved a Cable & Harness Loom style color cannot be updated issue. INVGEN-41120

Resolved issue where visibility of the components setting is ignored when editing a Cable & Harness sub assembly. INVGEN-43727

Add-Ins – Content Center

Resolved issue where the Place from Content Center icon (Ribbon) switched to Place icon during placing a component from Content Center. INVGEN-32831

Resolved issue where columns with formulas that reference other columns weren’t working correctly. INVGEN-36130

Resolved issue where Content Center commands were enabled for non-master positional representations when switching between documents. INVGEN-37050

Improved performance when placing large Content Center families. INVGEN-39031

Resolved issue for the Chinese version where Boolean values were translated in the opposite direction. INVGEN-43480

Add-Ins – Design Accelerator

Improved the constraint behavior of bolted connections (BC) by applying temporary ground constraints to keep the BC in position when constraining to them. Temporary constraints are removed afterward. INVGEN-39989

Resolved issue preventing bolted patterns from following the pattern after being edited. INVGEN-41252

Resolved error messaging issue, it is improved for cases where template report files aren’t accessible. INVGEN-41345

Resolved issue that the bolted connection did not insert the correct bolt length. INVGEN-41805

Resolved issue where the bolted connection generator created Through All holes instead of To Face holes. INVGEN-42562

Resolved a refresh Content Center Standard Parts with Bolted Connection sub-assembly issue. INVGEN-42851

Resolved issue that prevented changing the shaft generator element type or deleting the element. INVGEN-43202

Resolved issue that bolted connections did not work properly when the sub-assemble structure was disabled. INVGEN-44310

Resolved issue where Bill of Materials didn’t update correctly after using the Bolted Connection Follow pattern setting. INVGEN-44383

Add-Ins – Frame Generator

An additional index is added at the end of the file name to avoid duplicating file names. INVGEN-39016

Frame Generator property panel. Moved “Zoom” label away from border. INVGEN-39378

Improved stability when working with Frame Generator. INVGEN-41396

Add-Ins – Mold Design

Resolved issue with displaying saved Part Fill Analysis results after reopening the file. INVGEN-2884

Resolved a performance issue with imported data in Mold Design Generate core and cavity. INVGEN-40356

Add-Ins – Simulation

Resolved issue where saved Inventor files (when using the Centaur addin) did not include FEA results when re-opened. INVGEN-41945

Add-Ins – Simulation – Stress Analysis

Improved performance when moving an FEA probe tag. INVGEN-43601

Add-Ins – Task Scheduler

Resolved issue preventing Task Scheduler from checking files into Vault as part of a migration task. INVGEN-41548

Add-Ins – Tube and Pipe

Resolved issue where file naming defaults and indexing for Tube & Pipe run locations weren’t working correctly. INVGEN-37052

Resolved the issue where dimensions applied to a route did not persist when the Auto Dimension option is OFF. INVGEN-40329

It’s now possible to promote/demote tube and pipe content center components when they are outside the scope of tube and pipe assemblies. INVGEN-40379

Resolved issue preventing you from moving Tube and Pipe components in the browser. INVGEN-41253

Resolved a Tube and Pipe issue where Copy run doesn’t offer unique filenames for populated copied components. Now, when a run with populated route/s is copied, unique filenames for populated components are offered to finish the workflow. INVGEN-43243

Resolved issue where a Tube & Pipe assembly lost its adaptivity. INVGEN-43341

Improved stability when editing a Tube & Pipe route in some models. INVGEN-43347

Improved stability when editing routes in the Tube & Pipe environment. INVGEN-43616

Resolved issue where it was not possible to snap a tube and pipe component to the route end point during component placement. INVGEN-44122

Resolved issue where an unpopulated route did not update and later populate. For 2021 and earlier versions of Inventor. INVGEN-44277

Resolved issue where there are missing context menu commands during tube and pipe fitting placement. INVGEN-46146

Add-Ins – iLogic

Resolved issue where iLogic Form wouldn’t function after changing the Level of Detail and accessing the Bill of Materials. INVGEN-36380

Removed the Page Setup command from the rule editor toolbar. INVGEN-36993

In the iLogic rule editor, autocomplete now works for function parameters. INVGEN-39827

Read only parameters now have a different background color than read/write INVGEN-42780

Resolved issue causing iLogic forms to take a long time to refresh. INVGEN-43789

Resolved issue with Migrate ETO names where Inventor displayed an error or failed to migrate names. INVGEN-44408

Resolved iLogic UI issues related to dark theme. INVGEN-45661

Resolved issue with the Dark Theme where the the Publish 3D PDF dialog box would become too dark to read after creating an iLogic rule. INVGEN-46367

AnyCAD

The units of measure defined in Revit data file are now respected during import INVGEN-38659

Resolved issue where the Resolve Link dialog box would display when importing a Pro-e assembly. INVGEN-45694

Assemblies

Improved stability when enabling Suppress on the iProperties/Occurrences tab for a component. INVGEN-43768

Assemblies – BOM

Resolved issue where copying cells in the Bill of Materials would incorrectly overwrite the Quantity and Thumbnail values. INVGEN-42397

Resolved issue where the Bill of Materials Expand All Children setting wasn’t working. INVGEN-42435

Improved stability when working with iAssemblies Bill of Materials. INVGEN-43703

Assemblies – Constraints-Joint-Assemble

Resolved issue that iMate fails to match after replacement. INVGEN-42147

Assemblies – Copy Object

Resolved incremental file naming issue in Copy Component. INVGEN-39719

Assemblies – Design Views

Improved stability when using the undo and redo commands. INVGEN-42611

Resolved issue where Modify Design View Representation changes were not being saved in an assembly. INVGEN-42770

Assemblies – Features-Sketch

Resolved issue where Include Geometry in a 3D Sketch would not create fully constrained geometry. INVGEN-42390

Assemblies – Mirror-Copy-Replace

Resolved issue where Copy Components would corrupt the file when reusing an existing instance. INVGEN-45644

Drawings

Improved stability when working in the drawing environment. INVGEN-39174

Drawings – Tables

Resolved issue that Inventor failed to set the hole table origin at existing center mark. INVGEN-41662

Drawings – True Connect

Resolved issue where the drawing file size was increased after adding iProperties. INVGEN-37773

Drawings – Views

Resolved issue that 2D constraints were lost in a section view that used projected geometry when the angle of the reference geometry was updated . INVGEN-31205

Resolved issue where the initial drawing scale was not correct. INVGEN-44129

Resolved issue where Realign Auxiliary Views command persisted a raster view when Exported to PDF/DWF. INVGEN-44136

Resolved issue preventing pasting a view into the same location as the original view when the cursor is on sheet. INVGEN-44726

Parts

Resolved a stability issue when a derived sheet metal part is resolved to a new file and an update is pending. INVGEN-45273

Parts – 2D Sketch

Resolved a performance issue that occurred when creating sketch patterns. INVGEN-36776

Parts – Derive

Improved stability when editing a derived part sketch. INVGEN-44268

Parts – Extrude-Revolve-Sweep-Coil

Improved performance of Extrude Through All. INVGEN-43112

Parts – Fillet-Chamfer

Improved stability when using fillet to select an edge loop on a non-active component. INVGEN-43787

Improved stability when creating fillets. INVGEN-44154

Resolved issue where applying a variable fillet atop another fillet would exit Inventor, INVGEN-44971

Parts – Hole-Threads

Improved stability when creating a Hole during edit-in place after turning on “Allow Center Point Creation” and placing a Hole center point. INVGEN-43698

Parts – Measure

Improved stability when editing a drawing dimension while a modeless dialog is displayed. INVGEN-44959

Parts – Sheet Metal

Improved stability of the Refold feature. INVGEN-3353

Resolved issue about an API query for FlatBendResult.Bend hangs inventor. INVGEN-44872

Platform

Resolved issue where the custom template paths did not populate the Application Options/File tab fields when using /IMPORTOPTIONS on Inventor start up. INVGEN-37765

Improved stability of Inventor close when working in the VBA editor. INVGEN-41209

Improved stability when using the und and redo commands. INVGEN-41614

Resolved issue where Save As wasn’t checking to see if another document with the same filename was already open. INVGEN-41661

Improved stability when creating a sketch and an invisible insertion point was corrupt. INVGEN-43763

Platform – Framework

Improved stability when copying and pasting work geometry. INVGEN-45716

Platform – Graphics

Improved stability when editing a sketch pasted from an AutoCAD drawing. INVGEN-42066

Presentations

The last selected option in the tweak command is retained in the current Inventor session. INVGEN-11506

Translators

Resolved issue where the component color was missing when importing Pro/E assembly files. INVGEN-28934

Improved stability when importing an NX assembly which contains parts with issues. INVGEN-41550

Resolved missing face color issue when importing certain step files. INVGEN-42138

Resolved issue where AnyCAD Catia components were in the wrong position when exported to a STEP file. INVGEN-42305

Resolved issue where Export to STEP 242 or to JT, caused unexpected termination. INVGEN-43314

Translators – DWG-DXF

Resolved issue that title block text shifted when exported to an AutoCAD DWG file. INVGEN-44331

Tutorial Framework

Resolved issue preventing you from sharing Guided Tutorials. INVGEN-43609

Resolved issue preventing you from allowing the Tutorial Gallery to work properly with a Proxy server setup. This requires the Windows environment variables: http_proxy and https_proxy. INVGEN-43662

Resolved issue that the Nastran Convergence Settings icon was missing in the Inventor 2021 dark theme. INVGEN-42777

Resolved issue on My Home where the document number wasn’t showing up in the Recent Document section. INVGEN-44172

Resolved issue that the in-canvas edit box did not accept input when the model was open in a separate window. INVGEN-45983

UI – Browser

Fixed the color of the ‘unresolved’ icon for dark mode. INVGEN-43860

Improved the stability of suppressing unresolved content center files. INVGEN-44379

UI – Customization

Resolved issue that 3DA and Vault commands were removed from Quick Access Toolbar after restarting Inventor twice. INVGEN-43198

Resolved issue where a Macro button vanished from a custom panel after adding an optional parameter to the method. INVGEN-46035

UI – Mini Toolbar

Resolved issue causing View Navigation to respond very slowly when the appearance Adjust command is active under Dark theme. INVGEN-43761

Contact Us

If you would to discuss Autodesk software, please contact us by calling on 1800 490 514, by filling out the form or clicking the live chat in the bottom right-hand corner.

Autodesk Inventor 2021.1 Update Out Now

August 18, 2020

| No Comments

| Autodesk Products, Autodesk Inventor, Software

Autodesk Inventor 2021.1 Update Out Now

Autodesk has just released Inventor 2021.1 with some exciting new features and enhancements from feedback provided by the Inventor community.

Middle Mouse Button

Can you believe it? It’s here, something so simple, giving such pleasure… you can now assign the middle mouse button to pan, rotate and zoom, independent of using the control or shift key.

Between Option and Keep Body Tool

You can now extrude between to faces and/or planes. The second option which used to be hidden in the advanced tab is Keep Tool body.

XML Import and Export

Exporting usernames and values can be done via XML from the parameters dialog box, which is handy for iLogic users.

Multi-Open from Drawing Environment

The ability to multi-select parts, assemblies or presentations from the browser and open those files with a right click has been added which will all be opened in a separate window.

Right-Click > Align Section View

You can now align section views by right-clicking and choosing the command which is also available inside the Section View dialog box as a radio button.

Revit Interoperability

The support of choosing which Revit categories to import has now been added to the new Revit AnyCAD functionality in 2021.

Other enhancements have been with the progress bar will appear on the same monitor as Inventor and Revit files with non-ASCII characters will update properly.

Frame Generator

There continues to be improvements to Frame Generator with two new options added in this release. The first one is the ability to know if files are being saved outside your project before saving and the second option is a full path being displayed before saving.

The trim/Extend tool select is now active after you clikc apply, commands such as Insert/Miter/Notch are disabled in Weldment sub-environments.

The tool tip and property panel text has been unified and the cut for end treatments is now correct as the G_L length is now calculated by the frame algorithm and not by start/end planes which caused incorrect lengths when frames were modified.

For the full ist of updates, please refer to the Autodesk Inventor help file.

Check out the what’s new video here:

Design Consulting Products and Services

Design Consulting offers a wide range of products and services for Inventor users such as:

Contact Us

If you would learn more about Autodesk software, setup, training, design automation or Vault, please contact us by calling on 1800 490 514, by filling out the form or clicking the live chat in the bottom right-hand corner.

BIM 360 Integration

Many companies have to manually upload deliverables like PDF’s to BIM 360 in which they have to manually download projects locally, run export tasks and then upload the files to the correct folder, which can all be automated with IMAGINiT Clarity.

Regular IT adminstration such as project back-ups and storing project data offline can be scheduled and snapshots of Revit projects to share in BIM 360 with other disciplines can also be automated.

New in 2021, Clarity can now migrate BIM 360 projects and show metrics.

If you need to migrate between hubs, the task can be automated through Clarity and any metrics from IMAGINiT Clarity can automatically be imported into the BIM 360 dashboard to be visible for all project stakeholders.

Revit and Inventor – Prefabrication construction workflows

October 14, 2019

| No Comments

| Autodesk Collections, Architecture, Autodesk Inventor, Building Design Suite, Manufacturing, Product Design & Manufacturing Collection, Product Design Suite, Revit

With Construction and Manufacturing converging, the collaboration in design between Architects, Builders, Manufacturers and Fabricators has become more important than ever. In this article we explore the link between Autodesk Revit and Inventor to show how models and drawings can from the two systems can work together. In an Autodesk BIM environment, typically the architectural, structural and MEP design…

3D Rack Configurator

October 3, 2019

| No Comments

| Manufacturing, AutoCAD, Autodesk Collections, Autodesk Inventor, Factory Design Suite, Inventor, Product Design & Manufacturing Collection, Product Design Suite

Want to automate 3D configurable models, 2D drawings and a bill of materials? Check out this rack configurator with 45 options using Autodesk Inventor which automates the 3D model and Bill of materials, right down to the nuts and bolts. In this video we drop in multiple racks and layout out a factory with 57,000 parts using the tools in the Autodesk…

What’s New in Autodesk Factory Design Suite 2017

April 20, 2016

| No Comments

| AutoCAD, Autodesk Inventor, Factory Design Suite

Building on the Factory Design Suite 2016 Feature Update Pack, the new Factory Design Suite 2017 release has a focus on Speed: faster asset publishing, quicker response times when placing assets, quicker synching between AutoCAD and Navisworks and Asset Management: improvements in the lighter assets, working with parameters, better Vault integration and more functions and editing capabilities of assets. Here’s the list Included Software…

What’s New in Product Design Suite 2017

April 20, 2016

| No Comments

| Alias, AutoCAD, Autodesk Inventor, Product Design Suite

With Autodesk Inventor and AutoCAD at the core of Product Design Suite, you can view what’s new in Autodesk Inventor here and AutoCAD here. Depending on which Suite (premium or Ultimate), here’s the list of programs in the 2017 Suite: Inventor / Inventor Professional AutoCAD AutoCAD Mechanical AutoCAD Raster Design AutoCAD Electrical 3ds Max Showcase Vault Basic Recap Navisworks…

Autodesk Inventor Vs. Solidworks Review

April 18, 2016

| 5 Comments

| Autodesk Inventor, Factory Design Suite, Plant Design Suite, Product Design Suite

With CAD systems constantly changing features, versions, licencing and subscription models, two of the most popular comparisons is between Autodesk Inventor and Solidworks. Having used and supplied both, I’ve put together a licencing and feature comparison. Product Choices You can buy Autodesk Inventor in Limited Technology (LT), Autodesk Inventor Professional, Autodesk Inventor HSM or Autodesk Inventor/ Inventor Professional in a Design Suite….

What’s New in Autodesk Inventor 2017

March 29, 2016

| No Comments

| Autodesk 360, Autodesk Inventor, Factory Design Suite, Manufacturing, Product Design Suite

It’s that time of year again to see what’s new in Autodesk’s Inventor 2017.Another pretty good release with new technology that are in line with where things are heading, a focus on cloud collaboration and enhancements that users have been requesting. Below is a full list of what’s new, but here’s the top new things that I like and a…

Autodesk changes Inventor and Inventor Professional subscription pricing

March 24, 2016

| No Comments

| Autodesk Inventor

As of March 21st, 2016, Autodesk Inventor Professional subscription prices will be the same as Autodesk Inventor pricing and the product line will be consolidated to Inventor LT and Inventor. The new Autodesk Inventor will have all the features of Inventor Professional at the same price of Inventor, which is 40% cheaper and users can subscribe monthly, quarterly, annually, 2…

Autodesk Inventor 2017 Beta 1 is now avaliable

December 15, 2015

| No Comments

| Autodesk Inventor

Building on one of the CAD industries best releases in years, which was followed up by a R2 and R3, Inventor 2017 Beta 1 is now available for download along with other goodies from the beta site. Man, this one is even better than 2016 by a long shot!!!

What’s New in Inventor 2016 – Release 3

November 26, 2015

| No Comments

| Autodesk 360, Autodesk Inventor, Factory Design Suite, Plant Design Suite, Product Design Suite

The new R3 release not only has hotfixes but Autodesk have added more technology for users on subscription. To recap, Release 2 had: Simulation Shape Generator – Punch in a force, factor of safety and how much weight you need reduced and Shape generator will provide a design that meets the criteria Force Effect, which is a simulation app on Android…

What is AnyCAD?

March 29, 2015

| No Comments

| Alias, AutoCAD, Autodesk Inventor, Factory Design Suite, Product Design Suite

AnyCAD is a way CAD users can maintain associativity between different CAD platforms. It is compatible with Alias, AutoCAD, CATIA V4/V5, Creo, NX, Pro Engineer and Solidworks 3D file formats. The way it works is that you import a model as a reference file and creates a, link, instead of having to convert, translate CAD geometry or use feature recognition,…

What’s New in Autodesk Inventor 2016

March 28, 2015

| 9 Comments

| Autodesk Inventor, Factory Design Suite, Fusion 360, Manufacturing, Plant Design Suite, Product Design Suite

One of the biggest and best releases in CAD let alone Inventor. When Inventor 2015 was released I thought it was one the No.1 CAD system on the planet, Inventor 2016 cements it. Inventor blows away anything else on the market, add to that you get it in a Suite of other best of breed products and nothing else comes…

What is #TheFutureofMakingThings ?

February 19, 2015

| 1 Comment

| 123D App, Alias, Autodesk 360, Autodesk 360 Products, Autodesk Inventor, Autodesk Labs, Autodesk Maya, Autodesk Research, Fusion 360, Hardware, Manufacturing, Maya, Product Design Suite, Simulation, Visualisation

Autodesk has launched The Future of Making Things. A vision of how they see future human and business interaction with technology when it comes to engineering, design, analysis and collaboration. At the Autodesk University Keynote address in December, 2014, Jeff Kowalski, Autodesk SVP and Chief Technology Officer, discussed how Autodesk is looking at technology and design through the lens of…

Inventor 2016 Alpha is now in Beta 1 Phase

December 2, 2014

| No Comments

| Autodesk Inventor

If anyone on subscription wants to get a preview of 2016, head to beta.autodesk.com and get access to Inventor 2016 Beta. I’ve never seen a CAD system which so many new features and enhancements. This one is going to shake up the CAD world! Check out the previews at Autodesk University… News Flash 27/3/15: It’s released – http://designconsulting.com.au/2015/03/28/whats-new-in-autodesk-inventor-2016/

Parametric Dumb Solids with Hybrid Direct Editing

September 30, 2014

| No Comments

| Autodesk Inventor, Product Design Suite

So you’ve got a 3D model in a neutral format that you want to make parametric and feature recognition doesn’t cut it and history free direct editing isn’t your preferred style. Here’s how: There’s a little bit of setup but it sure beats remodeling the whole thing, especially on complex models. One person commented since publishing this…

Using iLogic as an Automated 3D Costing Tool

September 24, 2014

| 2 Comments

| Autodesk Inventor, Factory Design Suite, Plant Design Suite, Product Design Suite

I often get asked, can the CAD package, at the asspopulate level, automatically build the model to spec and produce a price. The usual workflow is to put in a cost property and an equation where applicable (e.g. working out sqm) and export the BoM to Excel. As I use iLogic to automate the assembly, I thought it would be…

Surfacing Showdown: Autodesk Inventor Vs. The Rest

September 23, 2014

| No Comments

| Autodesk Inventor, Factory Design Suite, Product Design Suite

Which 3D MCAD package does it faster, with less features, better control & feedback with higher surface quality? With a number of different surfacing technologies in the MCAD market, I thought it would be interesting to see how Autodesk Inventor’s Freeform Modelling (using N.U.R.B.S with T-Splines), stacked up against the rest. CAD Systems In this review, the following CAD systems are…

Nastran In-CAD 2015 for Solidworks

August 15, 2014

| No Comments

| Autodesk Acquisitions, Autodesk Inventor, Manufacturing, Product Design Suite, Simulation

Nastran In-CAD 2015 is now shipping for an integrated environment for Soldiworks. With a great reputation in the industry the Nastran solver does FEA linear and non-linear analysis. Adding to the Moldflow, Algor & CFDesign Line Up, Autodesk is now shipping Nastran 2015 and Nastran In-CAD 2015 for an integrated environment for Soldiworks and Inventor. The solver is also…

Autodesk Releases Nastran 2015 and Nastran In-CAD 2015

August 15, 2014

| No Comments

| Autodesk Acquisitions, Autodesk Inventor, Manufacturing, Product Design Suite, Simulation

Adding to the Moldflow, Algor & CFDesign Line Up, Autodesk is now shipping Nastran 2015 and Nastran In-CAD 2015 for an integrated environment for Soldiworks and Inventor. With a great reputation in the industry the Nastran solver does FEA linear and non-linear analysis. The solver is also integrated into Autodesks Simulation Mechanical (Local Machine) and Simulation Flex which is…

Autodesk Inventor 2016 – Alpha

July 23, 2014

| 5 Comments

| Autodesk Inventor, Autodesk Labs, Factory Design Suite, Plant Design Suite, Product Design Suite

I just logged into Autodesk Beta and checked out the new enhancements and downloaded Alpha. If you thought 2015 was a kick-ass release, from what I’m seeing in the Autodesk Inventor 2016 Alpha… Wow! As I’m binded by confidentiality, I can’t say anything specific except that they are doing some great work over at Autodesk with the help of the…

Mockup 360 Now in Product Design Suite 2015

April 2, 2014

| 2 Comments

| Autodesk 360, Autodesk 360 Products, Autodesk Inventor, Manufacturing, Product Design Suite, Visualisation

Open Collaboration Services Added to the Suite’s Subscription Services. If real-time open collaboration (regardless of CAD tool), large scale 3D visualisation, clash detection analysis and project management ticks boxes as benefits in your design workflows, then take a look at Mockup 360. Product Design Suite Services are cloud based services such as Autodesk 360 (Document Hosting, Sharing, Editing & Collaboration), Optimisation Studies for Inventor…

Autodesk Inventor 2015 – Sheet Metal Enhancements

April 1, 2014

| 1 Comment

| Autodesk Inventor, Factory Design Suite, Fusion 360, Manufacturing, Plant Design Suite, Product Design Suite

With sheet metal design being an integral part of many Inventor customers, the new features and enhancements are always taken with great interest, so here’s a video I put together: So What’s New in Sheet Metal for Inventor 2015 Rename End Of Part (EOP) to End Of Folded (EOF) for sheet metal parts Enhanced orientation control in…

What’s New in Autodesk Inventor 2015

March 28, 2014

| 1 Comment

| Autodesk Inventor, Factory Design Suite, Fusion 360, Manufacturing, Plant Design Suite, Product Design Suite

Hybrid Parametric Direct Editing, N.U.R.B.S with T-Splines and more… Inventor 2015 is one of the best releases yet, unlike any other CAD tool on the market today because it not only delivers enhancements to existing tools and UI but adds new technology that makes this product so unique. There’s 2 big additions and many enhancements, so in this article…

1 of 2
1
2
Next »

Autodesk Inventor vs. Advance Steel: A Detailed Comparison

Overview of Autodesk Inventor

Key Features of Autodesk Inventor for Steel Design and Fabrication

Ideal Use Cases for Autodesk Inventor

Overview of Advance Steel

Key Features of Advance Steel

Ideal Use Cases for Advance Steel

Feature Comparison of Overlapping Tools

Frame Generation and Steel Editing

Sheet Metal Design

Automation and Documentation

Autodesk Inventor vs Advance Steel: Key Differences

Autodesk Inventor vs Advance Steel: Choosing the Right Tool for Your Needs

When to Use Autodesk Inventor

When to Use Advance Steel

Autodesk Inventor and Advance Steel integration

Steps to Convert IFC Components into Advance Steel Members:

Unlock Your Design Potential—Choose the Right Tool for Success

Contact Us

Comprehensive Comparison of BIM Collaborate and BIM Collaborate Pro

What is BIM Collaborate?

What is BIM Collaborate Pro?

Key Differences Between BIM Collaborate and BIM Collaborate Pro

Detailed Feature Analysis and Comparison

Cloud-based Document Management

Automated Clash Detection

Advanced Analytics

Design Review and Coordination

Real-time Co-authoring

Collaboration for Specific Software

Robust Access Controls

Sandboxed Coordination Spaces

Project Timeline Visualization

Valuable Project Insights

When to Use BIM Collaborate?

When to Use BIM Collaborate Pro?

Integration with Other Autodesk Tools

Make the Right Choice for Your BIM Needs

Contact Us

Maximising CNC Efficiency with Autodesk Inventor and Fusion CAM Setup and Training Services

How Do These Solutions Improve Efficiency?

1. Autodesk Inventor

2. Fusion CAM

3. Inventor Nesting

The Benefits of Setting Up Inventor or Fusion CAM with Design Consulting

1. Customised Setup and Configuration

2. Associative Link Between Design and Machining

3. Expert Post-Processor Customisation

4. Training and Support

Unlock Your CNC Potential with Design Consulting's Autodesk Inventor and Fusion CAM Expertise

Contact Us

What's New in Autodesk Vault 2024

Authors: More features for CAD users in Vault 2024 to Focus on the Work

Job Processor: DXF and STEP

Copy Design Enhancements

Copy Design BOM Enhancements

Copy Folder Structure

Save up to 20% on Autodesk Vault Deployments

Insert Punch Tool from Vault

Administrators: Enforcing Vault Standards for Gratere Project Compliance

Inventor Design Data & Template Management

Peer Review

Job Processor

Thin Client Admin Settings

Backup/Restore Enhancements

Participants: Intuitive Vault Tools in 2024 for Project Collaboration

Thin Client – Enhancements

Inventor Read-Only Vault Add-in

Learn More about Autodesk Vault 2024

Ready to get Autodesk Vault 2024?

Get up to 20% Off Software or Services!

What's New in Autodesk Inventor Professional 2024

General Enhancements

General

Graphics

Product Design and Manufacturing Collection

Inventor Professional 2024

Autodesk Inventor Training Introduction Course

Autodesk Inventor: iLogic training

Part Modeling Enhancements
